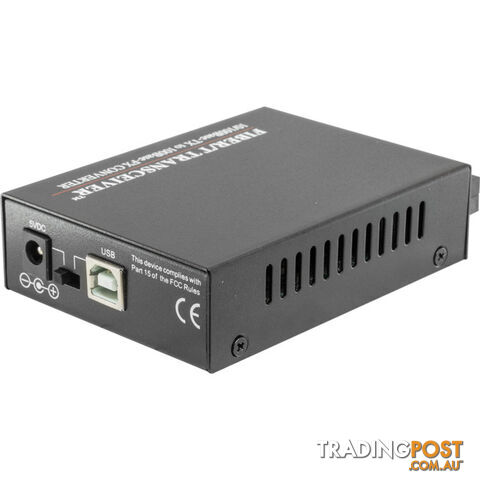

FMC100SM20KSC 100M FIBRE MEDIA CONVERTER 10/100M SM DUAL FIBRE SC 20KM

FEATURES 10/ 100M Fibre Media Converter translates the signal froma twist-pair 10/100Base-TX cable to 100Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fibre optic cable, which supports LFP (Link Fault Pass-through) function & USB Powered. FEATURES 10/ 100Mbps auto-sensed, easily upgrade Full-duplex and half-duplex auto-sensed MDI/ MDI-X Auto Negotiation 10/ 100Mbps store-and-forward 100Mbps cut-through transmission Packet size up to 1518bytes Supporting VLAN/ VoIP/QoS packets Support flow control and reduce broadcast packets Supporting STP to form a redundant network Extremely low power consumption, low heat and stable performance Providing Desktop, Wall-mounted, Chassis and DIN-rail installation LFP (Link Fault Pass-through) Function External Power Adapter or USB power source DIP Switch to set configurations Supporting extra-long packets up to 1600 bytes APPLICATIONS Network Communication FTTH/ FTTB/ FTTx ISP Backhaul Networking AVAILABLE FIBRE MEDIA CONVERTERS Code Model Ports Speed Mode Dual Fibre Connector Distance 09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM 09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM                 09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M                 09051550 4P100SM20KSC 4 100MB SM Y SC 20KM 09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM                 09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.       SPECIFICATIONS Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/ FX Fast Ethernet Data Rate Copper: 10/ 100M; Fibre: 155M Flow control Full duplex: flow control; Half duplex: back pressure Copper Port No.s of Copper Port: 1 Connector: RJ45 Connector Distance:100m Fiber Port No.s of Fiber Port: 1 Connector: SC as default, FC/ST optional Wavelength: MMF 1310nm, SMF: 1310nm, Bi-di 1310/ 1550nm Distance: MMF 2km, SMF 20/ 40/ 80/ 100/ 120Km, Bi-di20/ 40/ 80/ 100km LED indicators PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/ action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fibre) Power supply Working power: DC5V 1A AC Power Supply: 100V~ AC 240V to 5V 1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional Power consumption
