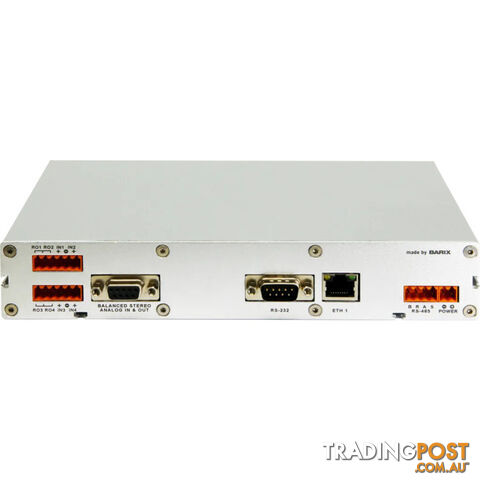

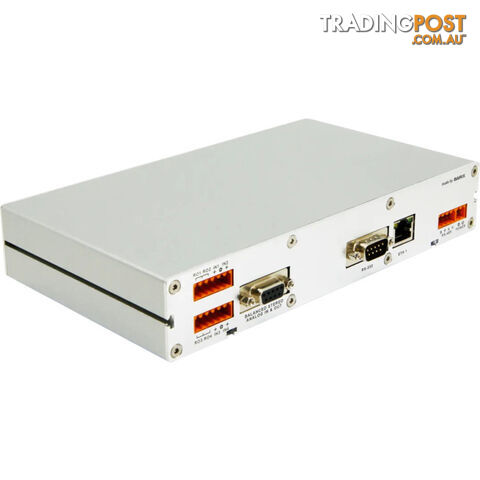

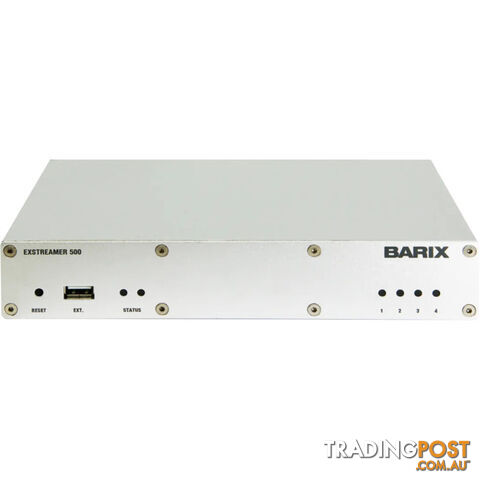

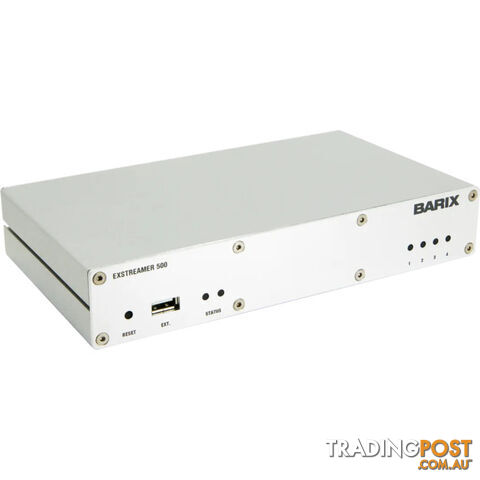

BAR20109096 BARIX EXSTREAMER 500

BARIX EXSTREAMER 500 BAR20109096 BARIX Professional Multiprotocol IP Audio de-/encoder with I/O,balanced audio. Support of Internet Radio and VoIP (SIP, RTP) codecs and protocols make the products the ideal choice for broadcast, professional and VoIP applications. APPLICATIONS Live IP Audio Encoder for Streaming Applications Generic, bidirectional full-duplex VoIP module forPaging and Intercom Applications Paging and Audio Distribution with Amplifier control and monitoring Shoutcast/Icecast Source Encoder Confidence Monitoring and Vox Switch for Broadcast Applications Commercial Audio Streaming Applications Multiroom IP Audio System Receiver Low latency IP Audio Encoder for multichannel applications Background Music and Music-on-Hold encoder for VoIP Applications Source Encoder for IP Audio Distribution Applications Digital Annunciator, Message Player, Message Repeater SIP and IP Paging Zone Device Features MP3, G.711, PCM Encoding MP3, G.711, PCM, AACplus*,Ogg Vorbis*, Decoding Shoutcast/Icecast Source capability Audio Level Supervision with SNMP Trap generation IP Streaming via TCP, UDP, RTP, Multicast Balanced Line Level Input (Stereo) Balanced Line Level Output (Stereo) Relay Output (4) Contact Closure Input (4) RS-232 / RS-485 Serial Port USB Flash Memory Interface Supply Voltage 24...48 VDC   SPECIFICATIONS Electrical 24 to 48 VDC ± 20% Power requirement: 8 Watt max. 2 pin screw terminal connector Ethernet 10/100Mbps auto, RJ-45 connetor with integrated Link & Activity LEDs Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable RS-485 4 pin screw terminal connector 300..230‘400 Baud asynchronous, 7/8 bit Analog Inputs & Outputs (stereo) DB9 female socket Analog Inputs Differential input, 18kOhm input impedance Clipping level 15dBu, 12.3 Vpp Frequency response (-3dB) 20..20‘000 Hz** Signal to Noise Ratio 87 dB, THD 0.01% Stereo crosstalk -88 dB Input level software controllable (-3.. 19.5dB) Analog Outputs Differential output, 40..60 Ohm output impedance Output level software controllable Full scale output voltage: 15dBu, 12.3 Vpp Frequency response (-3dB) 20..20‘000 Hz** Signal to Noise Ratio 92dB, THD 0.03% Stereo crosstalk -66 dB Formats Format Encode Decode PCM Y Y G.711 Y Y Ogg Vorbis* - Y AAC * - Y MP3 VBR, CBR* VBR, CBR* Discrete I/O Two 6 pin screw terminal connectors 4 contact closure sensing inputs 4 relay contacts, 24V 0.5A, normally open Mechanical Aluminum case, 620g, rack mountable using accessory bracket Dimensions (W x H x D) 216x38x125mm (8.5x1.5x4.92 inch) MTBF Calculation 410 000h (according to MIL217F at 25°C)   * Hardware revision 2 only ** depends on used codec, best results @48kHz PCM Â
