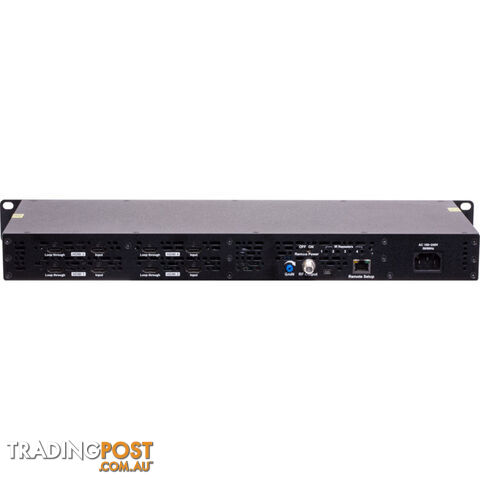

HD4797 DVB-T QUAD INPUT MODULATOR MPEG-4 ENCODING HDMI LOOP OUT

FEATURES HD-4797 is a new HD 4-input MPEG-4 only DVB-T modulator. It's ideal for any commercial RF network. The high quality HD design allows for watching action packed movies and sports channels on any HDTV. The space saving design delivers up to 4 high quality HD channels in a single 1RU space and features passive cooling - no fans! This is ideal in multi-video distribution solutions for both residential and commercial applications for new TVs. H.264 AVC HDMI input, HDMI loop through and RF output Built-in IR control Gain control (20dB manual attenuation) RJ-45 port for web management Video resolution: Up to 1080p Perfect, clean and clear HD picture on high motion video, sports, test crawls/rolls, etc Front panel LCD dispaly for easy installation Cool & "nearly" silent operation Rack mountable 1RU height 41dB MER SPECIFICATIONS Input Video Input HDMI Video Input Level 0.7-1.4V(peak to peak) Video Mode PAL/NTSC Audio Input Stereo Audio Input Level 0.4-4.8V(p-to-p) Output Frequency Range Local Country Available Output Level 85 dBµV MER >36 dB typ. Modulation Video Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compression H.264AVC (MPEG-4) Audio Compression MPEG1 Layer II/ AAC LCN Yes Carrier (OFDM Mode) 2K/ 8K Guard Intercals 1/32 Code Rate(FEC) 7/8 Constellations 64-QAM General Power Supply 12 VDC 4 Amp Consumption 1650 mA Operating Temperature 0°C-45°C Storage Temperature -10°C- 60°C Language English Dimension 482.7mm x 187mm x 44.4mm Weight 2.76 Kg Product Manual PDF file Product Info PDF file Product Overview Video not loading? Watch it over at YouTube! Weight: 3.46 kg Barcode Number: 9328202020116
