C265IDC 6.5" 2-WAY CEILING SPEAKER C CAM BASS-PIVOTING IDC

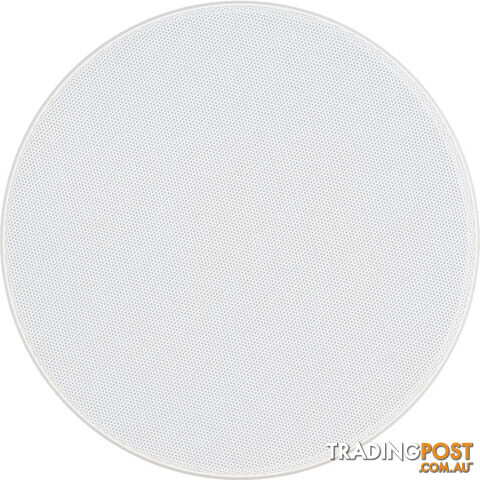

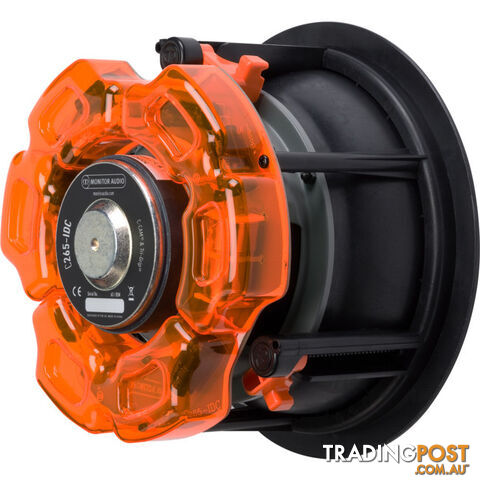

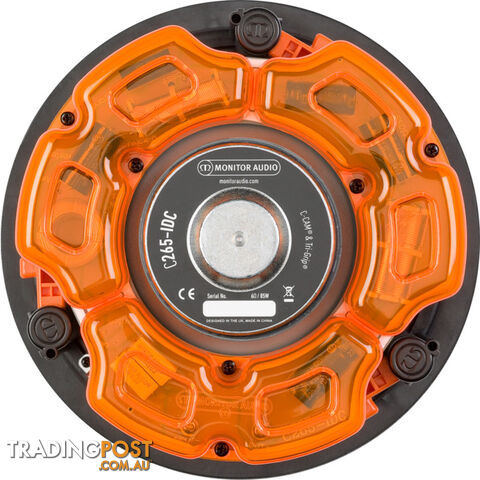

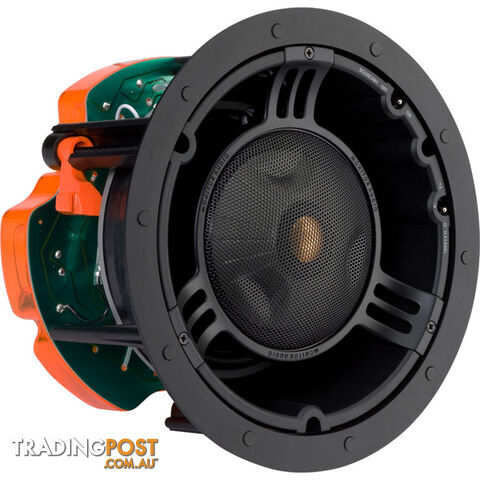

C265-IDC - 2 WAY IN-CEILING SPEAKER Features a 61/2 inchC-CAMbassdriver and a pivoting IDC module, housing a 4-inch C-CAMRSTinverted midrange driver and a 1-inch C-CAMGold Dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency ( 3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls. Optionalsquareorpremium grillecan be used with this model. Key Features Pivoting IDC module with C-CAM RST inverted midrange & C-CAM Gold DomeTweeter C-Cam Bass 6.5" Bass Driver True 3 Way Design Mode Switch Paintable Grille   SPECIFICATIONS   Frequency response 60 Hz – 30 kHz Nominal Impedance 6 ohms Sensitivity (1W@1M) 88.5 db Maximum SPL 108dBA Power Handling (RMS) 85 Watt Recommended Amplifier Requirements 20-85 Watts Drive Unit Complement 61/2"C-CAMconebass driver, pivoting IDC module housing: 4" C-CAMRSTinverted mid rangedriver 1" C-CAMGold Dome tweeter Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) Bipole / Dipole Switch Overall Diameter (Including Grille) 250 mm (913/16") Mounting Depth 150 mm (57/8") Cut-Out Hole Diameter 211 mm (81/4") Fixing Type 3 positionTri-Gripdog fixings Connection Gold plated ‘push’ type terminals Grille attachment Magnetic - (optional square grille- outer dimmensions 249 x 249 mm(93/16") Construction Material Mineral filled ABS, RoHS compliant Weight 2.54 kg (6 lb 10 oz) Pre- Construction bracket CB6Pre-Construction Bracket (Purple) Back Box CCBOX-L/CMBOX-R Custom product install guide PDF file CI overview PDF file Weight: 3.57 kg Barcode Number: 5060028971503
