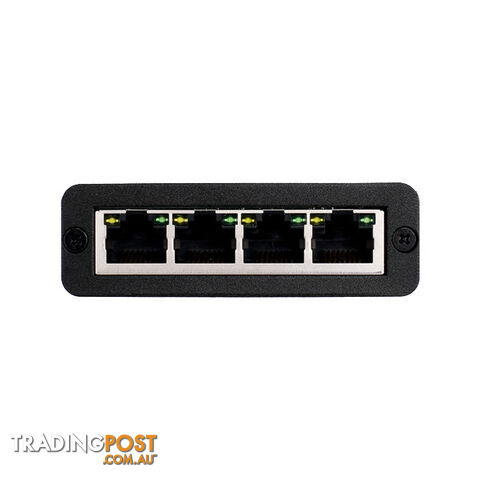

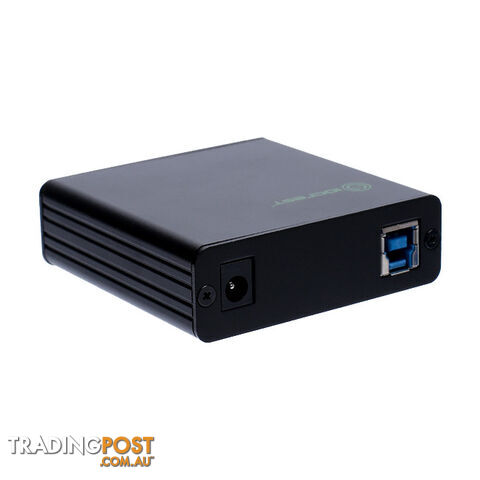

UL4 USB3.0 TO 4 LAN PORTS ADAPTER

USB3.0 TO 4 PORTS 10/100/1000M ETHERNET CONTROLLER FEATURES Integrated 10/100/1000M transceiver Supports USB 3.0, 2.0, and 1.1 Supports CDC-ECM Supports LPM (Link Power Management) Supports pair swap/polarity/skew correction Crossover Detection Auto-Correction Supports Wake-On-LAN and ‘RealWoW!’ Supports power down/link down power saving Supports hardware CRC (Cyclic Redundancy Check) function Supports Full Duplex flow control (IEEE 802.3x) Fully compliant with IEEE 802.3 and IEEE 802.3u Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging Supports IEEE 802.3az-2010 (EEE) Microsoft AOAC (Always On Always Connected) Supports 16-set 128-byte Wake-Up Frame pattern exact matching Supports link change wake up Supports Microsoft WPD (Wake Packet Detection) Supports Protocol Offload (ARP & NS) Intel CPPM (Converged Platform Power Management) Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0) Supports U1/U2 (USB 3.0) Supports selective suspend PACKAGE CONTENTS 1x USB 3.0 to 4 Ports Ethernet Adapter 1x Quick Installation Guide  1x USB3.0 Type-A TO USB3.0 Type-B Cable 1x DC 5V/2A Power adapter SYSTEM REQUIREMENTS Windows Server 2003, 2012, XP, Vista, 7, 8 32 and 64 bit Windows Server 2008 32 bit Linux, and Mac One available USB port APPLICATIONS USB 10/100/1000M Ethernet on Motherboard, Dongle, Notebook, Docking station, or Embedded system
