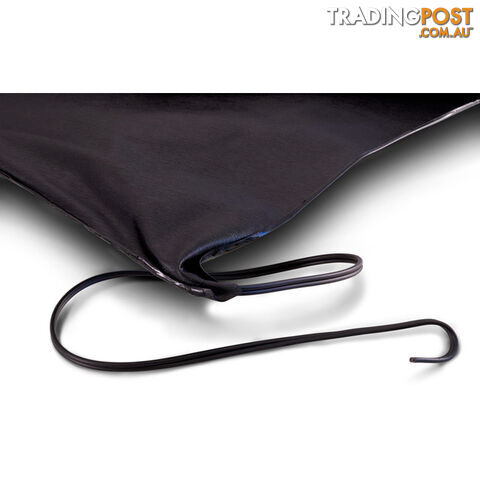

PM100 SECURITY PRESSURE MAT / PAD

Floor pressure mats are designed to detect a person treadingon them. An ideal security solution, the PM100 offers a low cost covert method of detecting a person. Apart from security related uses, the PM100 can be used to trigger other devices. (ie. You could have the PM100 trigger a multimedia presentation when you tread on it) High impact PVC material Trapped air cushion Size: 740 x 550mm Minimum weight to trigger the pressure sensor is around 16kg-25kg.   SPECIFICATIONS: Contact R. : 20ohm Max Insulation R. : DC 500V 100Mohm Min. Dielectric strength: AC 400V 1 minute Voltage: DC100V Current: DC 0.5A Operating life: 30,000 Cycles Thickness: 1mm Please note, this item requires other devices such as an alarm panel to operate. It is not a stand alone alarm, just a device to trigger an alarm.   IMAGES Weight: 0.4260 kg Barcode Number: 9328202026170
