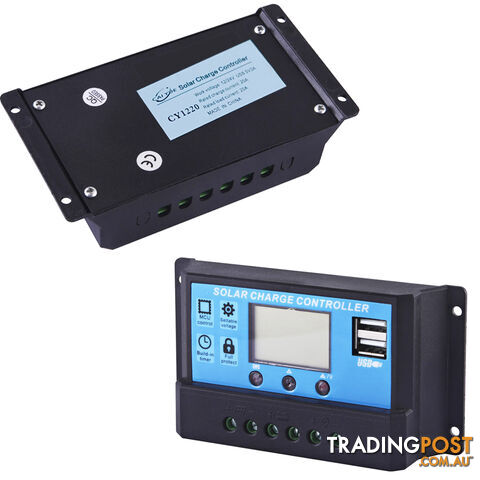

12V-24V 20A LCD Display PWM Solar Panel Regulator Charge Controller Timer PWN

Solar controller has specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing. We are reputable trader of solar charge controllers,power inverters,and solar power systems. All our products are designed for high quality and high reliability. The controller has a low failure rate and will last a long time. The solar controllers are built-in electronic fused that do not require replacements. The solar controlers electronics are protected with moisture-tight coating, minimizing damage from humidity and from nesting insects. Solar controller is fully automatic and requires no adjustments or user selections.

Features

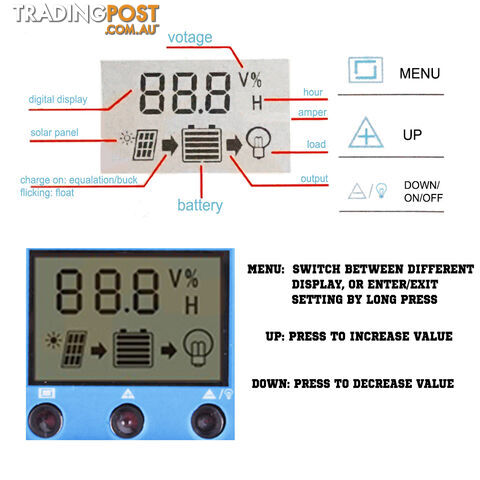

LCD display

PWM battery charging

All necessary protections equipped

Adjustable controlling parameter of the system

With double USB ports charge

Automatically recognizing day/night

Temperature compensation

Dual mosfet reverse current protection, low heat production

The Regulator is only suitable for lead acid batteries:OPEN,AGM,GEL

It is not suited for nickel metal hydride, lithium ions or other batteries

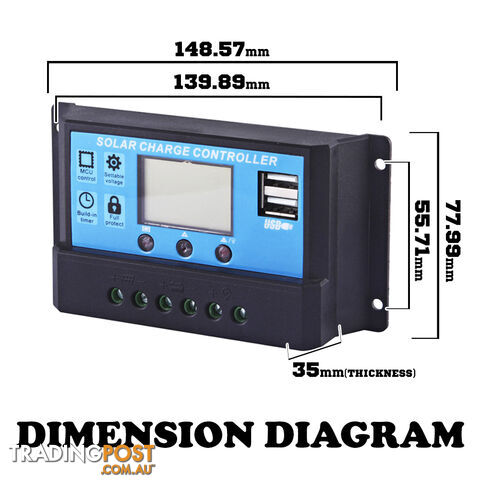

148.5*78*35mm
Size:
150g
Weight:
12.6V(default,adjustable)
Discharge reconnect:
10.7V(default,adjustable)
Discharge stop:
13V(default,adjustable)
Float Charge:
_10mA
Self consume:
Home, Industrial, Commercial
Application:
-35C to +60C
Working Temperature:
20A
Discharge Current:
20A
Charge Current:
12V/24V auto
Batt Voltage:
CY1220
Model NO.:
Specifications
1 Year Warranty
Warranty
1 x Solar Charge Controller

1 x User Manual
Package Contents
