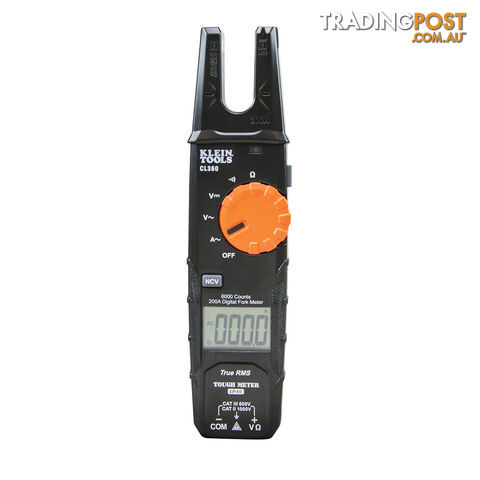

Klein Fork Meter Electrical Tester AC Auto Ranging 200 amp SKU - CL360

Fork Meter Electrical Tester
The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity and resistance via test leads.
It can detect the presence of a voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
Specifications
Type: Open-Jaw Fork Current Meter
Application: Measures AC current, AC/DC voltage, continuity and resistance
Special Features: Low-battery indicator, built-in test lead holders, back-lit display
Material: Plastic/electronics
Batteries: 2 x AAA
Auto Shut Off: Y
Jaw Size: 0.58 (1.5 cm) Opening
Drop Protection: 9.9 (3m)
Display: 6,000-count LCD
Functions: AC current, AC/DC voltage, continuity, resistance
Voltage: 600 V AC, 1,000 V DC
Current: 200A AC
Ohms (Resistance): 60MΩ
AC Voltage: 600V
DC Voltage: 1000V
DC Polarity Indicator: Yes
Ingress Protection: IP40
Standard: Jaw and housing: CAT IV 600 V/CAT III 1,000 V Electrical: CAT III 600 V/CAT II 1,000 V Class 2, Double insulation
Included: Carrying Case, Instruction Manual, Straight Input Test Leads and 2 x 1.5V AAA Batteries
Overall Length: 8.39 (21.3 cm)
Overall Height: 1.38 (3.5 cm)
Overall Width: 2.12 (5.4 cm)
Weight: 6.40 oz (180.0g)
Klein Fork Meter Electrical Tester AC Auto Ranging 200 amp
Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Tester measures AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads
Wide jaw for measuring current in cables up to 3/0 sizes accommodates cables with diameters of up to 0.58 (1.5 cm)
Non-contact voltage tester integrated into the jaw
Includes a carrying case, test leads and 2 x AAA batteries
Jaw and housing: CAT IV 600 V/CAT III 1,000 V Electrical: CAT III 600 V/CAT II 1000 V Class 2, Double insulation
Back-lit display for clear readings
Switches off automatically after 15 minutes of non-use to conserve battery life.
Rugged Klein METER is built to withstand a 9.9 (3m) drop
Low-battery indicator and easily accessible battery compartment
Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations
-
SKU: CL360
