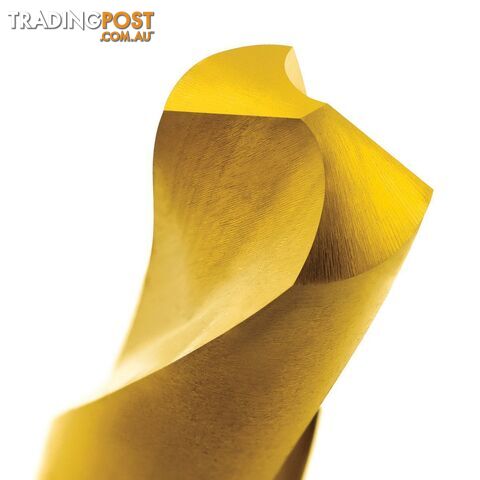

Drill D176 5.0mm Spotting 120 deg. DIN1897 HSS-Co. TiN Sutton D1760500

DRILL D176 5.0MM SPOTTING 120 DEG. DIN1897 HSS-CO. TIN SUTTON D1760500



Descriptions

Precision drill for machine use
Refer to Carbide Drill section for VHM Spotting Drills

Features

Spotting Drill for seat position accuracy
90° offers hole chamfering & spotting with the one tool
120° for spotting, matching a typical drill point
Only drill to the depth of the point

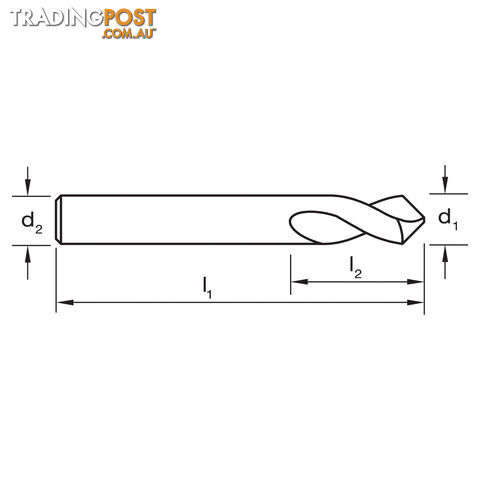

Specifications

Designation: N
Material: High Speed Steel Cobalt
Finish: TiN
Shank Form: A
X: als
Point Tolerance: h8
Shank Tolerance: h9
Point Type: 120°
Cutting Edges: ul
Standard: DIN 1897

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast
Optimal for Steel - Low alloy & cast
Optimal for Stainless Steel Austenitic- 180 HB
Optimal for Stainless Steel Duplex- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable 100 HB
Optimal for Aluminum & Magnesium, cast alloy 12% Si - Non Heat Treatable 75 HB
Optimal for Aluminum & Magnesium, cast alloy 12% Si - Heat Treatable 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 HB



Part Number/SKU: D1760500
