Murray Series 05 Pastureland Harrow

Murray Series 05 Pastureland Harrow


The Murray Pastureland Harrow System is recommended for pasture establishment, maintenance and renovation applications. Ideal for breaking down and distributing animal manures and other organic matter evenly across the whole pasture, using a Series 05 will encourage pasture growth. This light duty harrow is suitable generally for pasture areas of less than 100 acres (40 hectares) and tows easily behind small and medium size tractors.

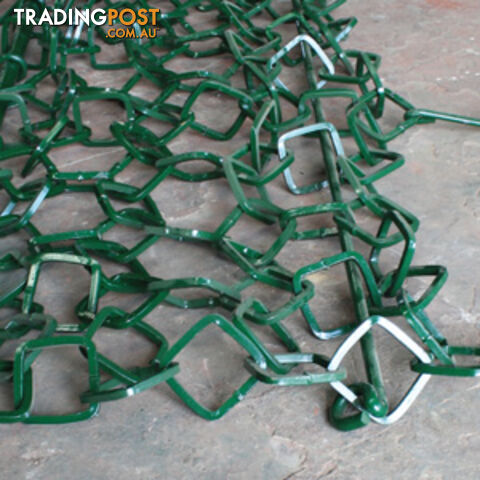

Murray Series 05 Pastureland Harrows utilise four rows of double-sided tripod tine units which slice through patts, clods and coarse vegetation. The tripod section is followed by heavy steel square chain mesh which further pulverises and spreads the manure and organic matter and revitalises the pasture. The “standard” single-mesh chain Murray Pastureland Harrow has 8 rows of chain complete with a spreader bar and drag weights. Where greater penetration and a more aggressive action is needed, the Murray “super” double-mesh chain Pastureland Harrow may be used, which has 15 rows of square chain mesh. The extra chain length and weight ensure a thorough processing of material.

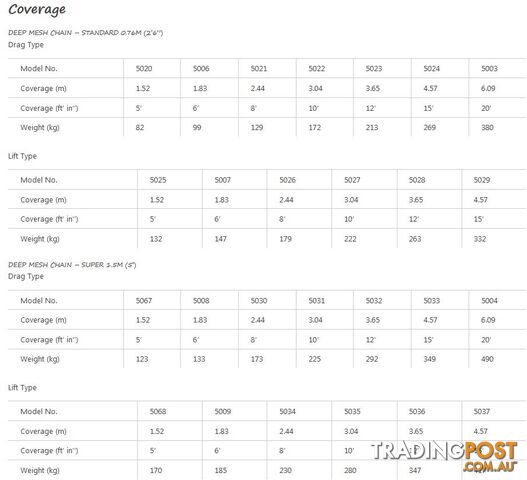

The Murray Pastureland Harrow is available in six widths between 1.52 metres (5’) and 6.1m (20’) in “standard”/single-mesh and “super”/double mesh versions. Each set of Murray Pastureland Harrows is supplied complete with a steel drawbar.
The Series 05 Pastureland Harrows can be used in conjunction with the Murray Series 21 3-point linkage Harrow Hoist Frame for ease of transportation. Specifications

• Tine Spacing 51mm (2”)
• Tine Length 85mm (3 11/32”) approx
• Centre to Centre of Front Hooks 305mm (12”)
• Available in 2 chain mesh depths 0.76m (2’6”) and 1.5m (5’)
