Samasz Disc Mower ? TORO front mowers

Samasz Disc Mower – TORO front mowers

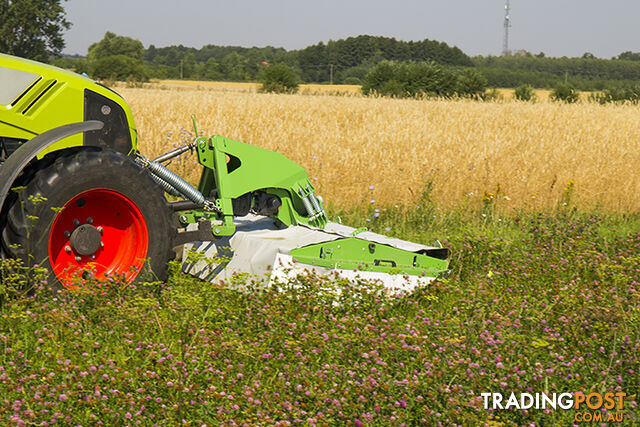

Samaszfront disk mower – TORO 300 has been designed to be used independently or complement rear mowers owing to its compact design and spring-type unloading features low weight and energy-efficiency.
Unloading is done by means of precisely chosen springs, owing to which the mower can follow ground very well what in result protects the turf against damages.
Optimum pressure of the cutterbar dependent on the working conditions can be adjusted with chain length. TORO 300 is equipped with a ground following system which is transverse in two planes, owing to which it is able to tackle well any transverse unevenness of up to ±10°, and also inclines on driving onto an obstacle. The mower’s operation is very simple and does not require use of any hydraulic assembly. TORO as a standard is aggregated with a tractor on tractor’s 3-point linkage cat. II. The drive onto the mower is transmitted from tractor’s PTO shaft (PTO=1000 rpm).
STRENGTHS:

• Extensive working width
• Simple and reliable design
• Perfect ground following
• Turf protection and forage cleanliness
• Low power and fuel demand
• Simple in use
• Modern look

.

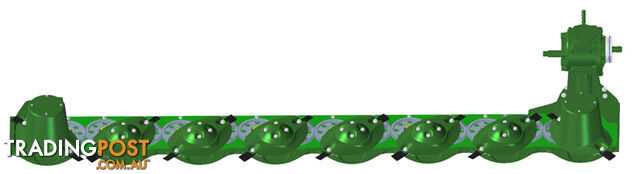

. PERFECT CUT Based on the experience of our customers in Poland and in Western Europe we have introduced to our production a new model of cutterbar: Perfect CUT. Precise cut, high durability of components, protection against sudden disc stop in case of coming into an obstacle, quick and easy disc module replacement owing to modernized upper disc hub are the main advantages of Perfect CUT cutterbars. New cutterbar is mounted in every SaMASZ disc mower apart from KDL series based on Comer cutterbar.

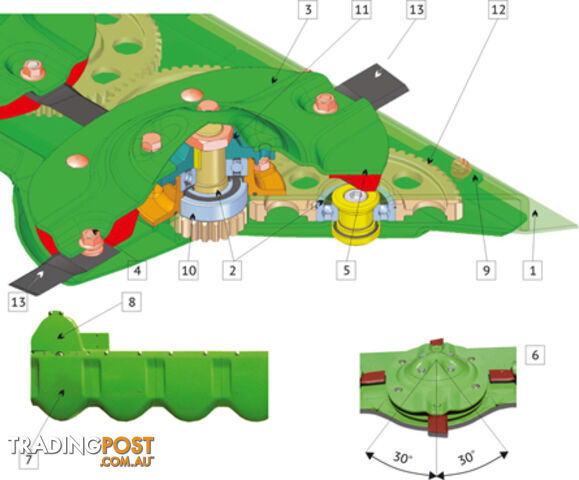

Main advantages of PerfectCUT cutterbar:
1.Smooth regulation of cutting height from 4 to 7 cm.- sliding skids from 5 to 9 cm
2.6307 2RSN bearings in bevel gears and 6307 2RS in disc modules are the most durable and unprecedented among our european competion.
3.Specially hardened discs and sliding skids made of Boron steel, protected against mud and dirt by means of the blades.
4.Easily replaceable knife holder pins.
5.Hardened knife holder made of Boron steel, especially designed in order to eliminate stucking of the knives under the disc.
6.Innovative system of quick knife replacement. The knife can be changed only when the disc is adjusted sheer to the cutterbar (+ – 30 degrees). The system decreases the probability of knife loss almost to absolute minimum in case of hitting into stone.
7.Modernized, hardened sliding skids made of Boron steel protect the whole surface of cutterbar on the bottom. Quick and easy replacement of the skids (only two bolts to unscrew).
8.Additional steel skid protecting cutterbar’s drive.
9.Hardened cutterbar made of steel.
10.Protection against stones in standard equipment.

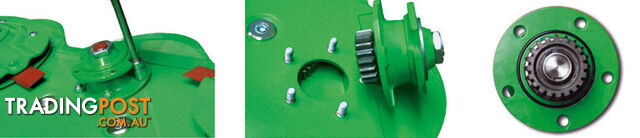

11.Quick and easy replacement of disc module thanks to modernized upper hub.
12.Bevel gears with 25 mm tightness.
13.High quality knives comply with strict safety rules. SaMASZ logo engraved on the knife is a guarantee of its quality.Protection against stones in standard equipment
Specially designed disc module protects the cutterbar with bevel gears in case of very strong, extreme hit of the disc e.g in a stone. The force of the hit cuts off only the key. Then, only the module needs to be replaced without the necessity of expensive cutterbar repair. The replacement of the module takes only a while and can be done on the field. Owing to that solution the time crucial during forage pick-up is spared. Modernized upper disc hub enables quick module replacement. Special cavities for bolts make it very easy to disssemble the module without the necessity of unscrewing upper hub. The drive of the discs is transmitted by means of bevel gears with high diameter, which increases the resistance of the disc in case of hitting into an immovable obstacle..
