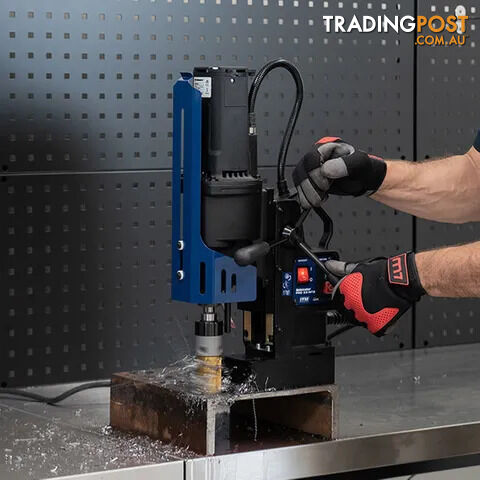

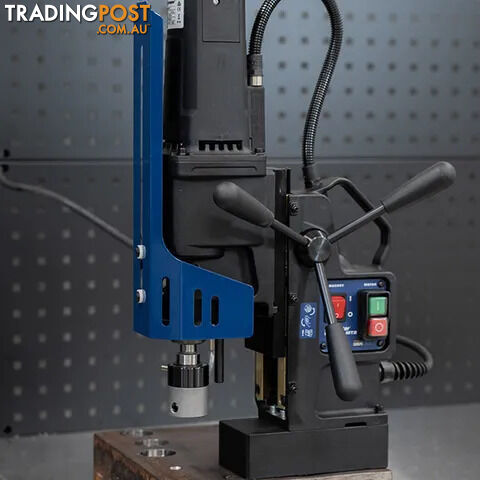

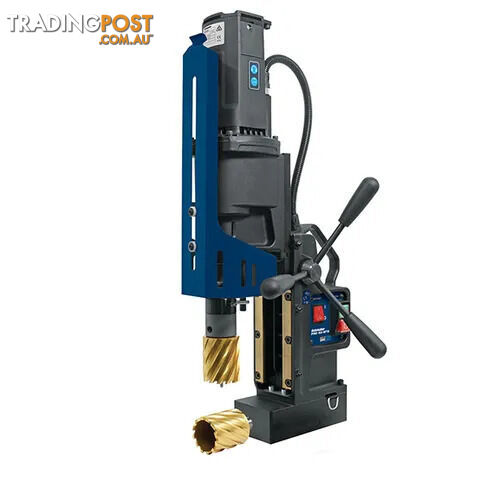

Magnetic Base Drill MT2 CAP: 52mm DIA X mm HMPRO52-MT2

MAGNETIC BASE DRILL MT2 CAP: 52MM DIA X MM HMPRO52-MT2

FEATURES

New generation machines with the latest technology and design.
New Rigid Frame Design
Provides increased life of cutting tools.
New Extra Large 165mm Stroke
Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
Magnetic Field Shape Control (MFSC)
Provides maximum holding power on thin materials.
Lightweight & Powerful
The new generation Holemaker machines are lighter and more powerful than other brands on the market.


Features:

Multi-purpose machine able to use Holemaker cutters, no. 2 Morse taper shank drills & reamers, as well as a drill chuck
Industrial 2-speed gearbox
Cast-iron motor housing
Through spindle coolant system, with an external side mounted gravity feed coolant tank
Left or right hand feed handle operation
Unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience
Smart magnet technology to ensure sufficient magnetic adhesion
Supplied in a blow mould plastic carry case
Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy-duty versatile machine is highly beneficial
Supplied complete with arbor for use with Holemaker cutters up to 50mm depth of cut (3/4" shank)
#2MT drill chuck SA20102 available separately

SPECIFICATIONS

Capacity (Diameter): 52mm
Capacity (Depth): 52mm
Capacity (Twist Drills): #2 Morse Taper 23mm
Motor Power: 1100 Watt
Input Power: 1200 Watt Single Phase 240V
Speed: 2 Speed 240 / 480rpm
Weight: 16.5kg
Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
Stroke: 165mm
Height (Min. / Max.): 456mm / 616mm




Part Number/SKU: HMPRO52-MT2

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
