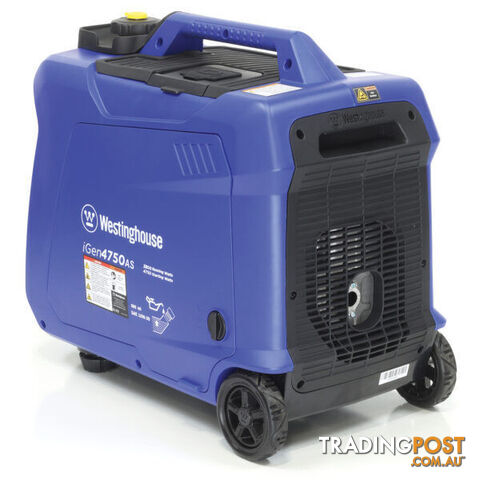

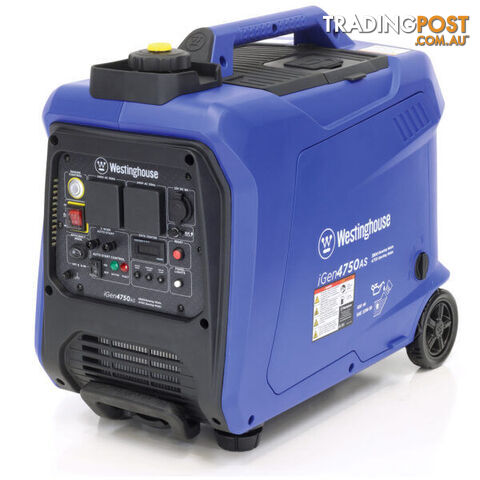

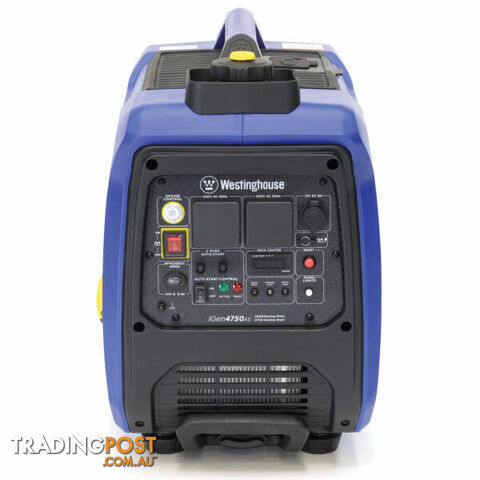

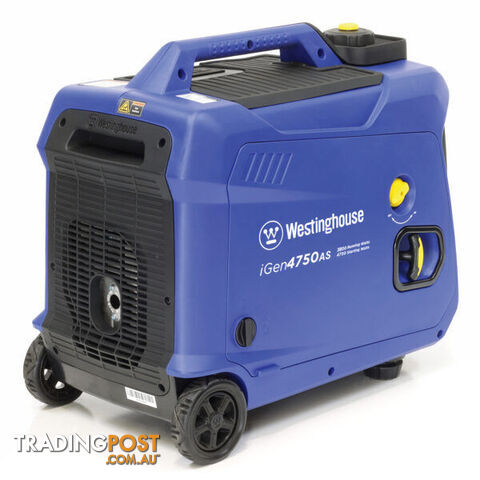

4750AS Digital Inverter Generator Westinghouse iGen4750AS

4750AS DIGITAL INVERTER GENERATOR WESTINGHOUSE IGEN4750AS

DESCRIPTION:

The new iGen4750AS delivers a powerful and flexible portable power solution with the added capability of 2-wire automatic remote start for integration with off-grid solar and backup power systems. It combines strong performance, quiet operation, and extended run time in a compact and mobile design. With electric start, remote control, and intelligent 2-wire control functionality, the iGen4750AS is well-suited to both home backup and advanced off-grid applications.

FEATURES:

High output 4750 starting watts / 3800 running watts.
Push-button electric start with wireless remote control.
2-wire automatic start, run, and stop control system.
Super quiet noise level for off-grid solar or mains backup use.
Up to 14 hours run time at 1/4 load on a 12-litre tank of fuel.
190cc Westinghouse 4-stroke OHV petrol engine.
LED lights illuminate the control panel for use at night.
240 Volt AC plug-in charger to maintain the onboard battery.
240 Volt AC and 12 Volt DC outlets plus a data center.
2-year domestic use warranty (conditions apply).

BENEFITS:

Powerful: Highest starting and running power outputs in its class.
Remote Control: Convenient push-button start and stop from a distance.
LED Lights: Illuminate the control panel for night-time operation.
Lightweight: Portable at just 36kg with handles and wheels.
Long Running: Up to 14 hours at 1/4 load with a 12 litre fuel tank.
Plug And Play: No assembly required, just add petrol.
Electric Start: One-touch power-up from the onboard 12-volt battery.
Off-Grid Solar or Mains Backup: 2-wire remote auto-start, run and stop control.
Battery Charger: Keep your generator ready to go at all times.
Super Quiet: Low-noise level ideal for home or off-grid RV use.
Mains Quality Electricity: Safe to power sensitive electronic equipment.

SPECIFICATIONS:

ENGINE

Type 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
Displacement (cc) 190
Maximum Speed (rpm) 4,500
Oil Capacity (mL) 600
Oil Viscosity SAE 10W-30
Low Oil Shutdown Yes
Low Oil Alarm Indicator Yes
Spark Plug Torch F7RTC
Fuel Unleaded Petrol # (91, 95 or 98 RON)
Fuel Tank Capacity (L) 12
Fuel Shutoff Valve Yes, Independent
Starting Method Local / Remote Electric and Recoil
Battery 12 V, Maintenance Free
Run Time @ 1/4 / Full Load 14 / 4.2 hours
Noise Level @ 1/4 / Full Load 57 / 67 dB(A) @ 7 m

240 VOLT AC ELECTRICAL

Voltage (V) 240
Frequency (Hz) 50
Number of Phases 1
Continuous Running Power (W) * 3,800
Maximum Starting Power (W) 4,750
Continuous Running Current (A) 15.8
Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output
Total Harmonic Distortion (THD
Receptacles 2 x 15 A, IP44
Overload Protection Electronic
Overload Indicator Yes
Overload Reset Push Button
Alternator Brushless, Permanent Magnet
Output Ready Indicator Yes
Data Centre Display Output Voltage & Frequency, Current & Cumulative Run Times
Control Panel Lights LED, Operable At All Times

12 VOLT DC ELECTRICAL

Voltage (V) 12
Maximum Current (A) 8
Maximum Power (W) 100
Receptacle 8 A, IP44

DIMENSIONS & WEIGHT

Generator L × W × H (mm) 643 x 374 x 574
Generator Weight - Dry / Wet (kg) 36 / 46
Packed L × W × H (mm) 750 x 460 x 588
Packed Weight (kg) 42






Part Number/SKU: iGen4750AS
