Excision 310PGD Bandsaw Machine 415V Double Mitre 401310PGD3

310 PGD Bandsaw Machine This bandsaw has been designed for rugged and tough conditions of a fabrication and engineering workshop.


Benefits:

Control Panel easy to reach and easy to control
Coolant Pump - fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both carbide guide assemblies
Powerful motor with variable speed 20-90 m/min

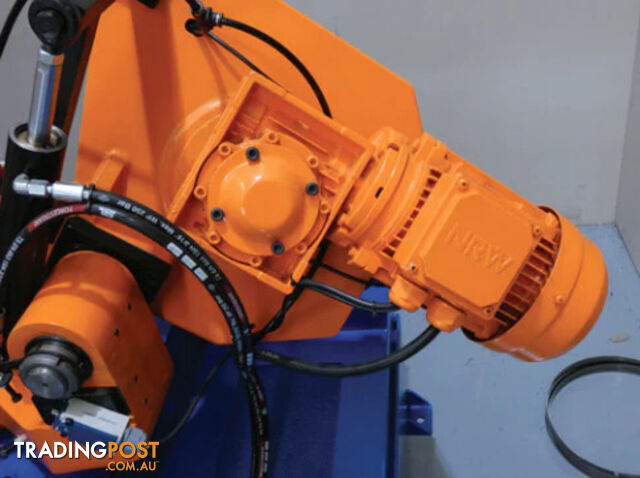

Heavy Duty direct dive gearbox built tough can cut all day non-stop

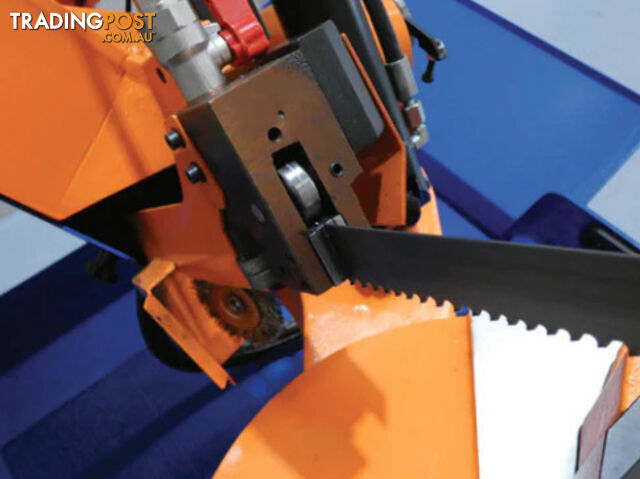

Blade guides with rollers and carbide pads provide precise support for the blade guarantee longer blade life.
Variable speed giving you a clean and fast cut for all materials, from aluminium to stainless steel to induction harden chrome bar
Blade brush to keep the blade clean from swarf
Low working height - only 730mm
Height adjustment switch to save you time when cutting smaller jobs
Hydromechanic Blade Tension gives you the correct amount of blade tension, critical for straight cuts and longer blade life
Material Limit Shaft machines stops once the cut is completed
Automatic blade break protection
Constructed in heavy gauge steel, giving you a strong rigid saw frame, providing a high degree of accuracy when cutting.

Technical Specification:

Motor - 1.5kW (415v - 3phase)
Blade Speed - 25 - 90 m/min (variable)
Blade Dimensions - 3150 x 27 x 0.9 mm
Machine Weight - 480kg
Machine Dimensions - 750 x 1650 x 1150 mm
Table Height - 730 mm
Cutting Capacity
0° 45° 60° -45°
250mm 190mm 120mm 180mm
250mm 190mm 120mm 150mm
250 x 310mm 190 x 250mm 120 x 140mm 100 x 250mm






Part Number/SKU: 401310PGD3
