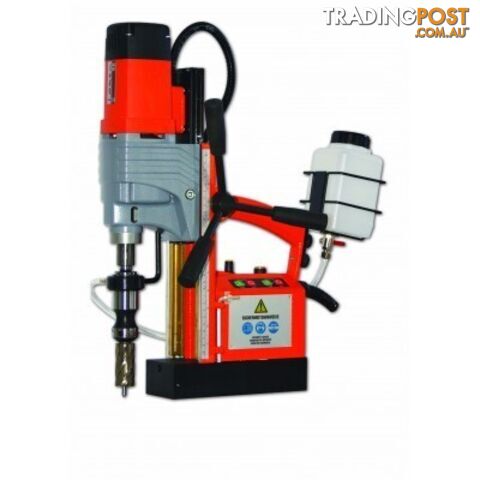

EM50 RL-E Magnetic Drill Excision 18612

EM50 RL-E MAGNETIC DRILL EXCISION 18612

DESCRIPTION:

The EM50 RL-E is all about versatility. Its forward-reversible gearbox makes tapping easy, while the variable 2-speed gearbox provides precise control for different hole diameters. Equipped with a Morse Taper 2 spindle and a solid 16,000N magnetic adhesion, its built for a range of tough drilling tasks.

FEATURES:

2-speed variable oil bath gearbox
Forward-reversible drive, ideal for tapping
3 coil 16,000N magnetic adhesion
Solid brass guides with spring loading for rigid gliding and no vibration
Morse Taper 2 spindle

SPECIFICATIONS:

Core Drill Dimensions 12.0-50.0mm
Cutting Depth 50.0mm
Twist Drill With a quick-release chuck up to 20.0mm with MT3 DIN 345 direct
Counter-Boring  10.0-40.0mm
Tapping Tapping Chucks: M3-M14 with tapping attachment: M3-M20
Arbors MT2
Stroke 170mm
Height Adjustment 100mm
2-Speed Gearbox Right/Left
1. Step 100-250rpm
2. Step 180-450rpm
Power Consumption  1,200W
Voltage 230V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength 3,800N/16,000N
Magnetic Base 92×238mm
Weight 16.0Kg
Gearbox Direction Forward-Reverse
Magnet Type Electric
Shank Type Morse Taper 2






Part Number/SKU: 18612
