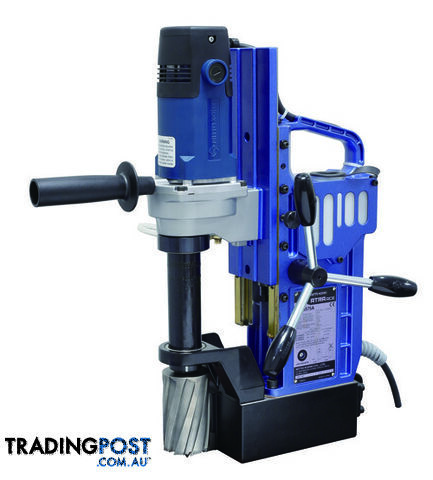

Nitto AO-5575A Magnetic Drilling Machine Manual Feed Atra Ace Nitto AO-5575A

MAGNETIC DRILLING MACHINE MANUAL FEED ATRA ACE NITTO AO-5575A

KEY FEATURES

 Manual feed
 For smooth cutting of deep and large holes
 A real workhorse
 New powerful single-speed motor 520rpm
 1020 kg/f double rectangular magnet
 Cuts up to 55mm thru 75mm plate
 One-touch arbor
 Supplied in sturdy carry case

APPLICATIONS

 Steel fabrication, manufacturing, construction and shipbuilding

SPECIFICATIONS

Model    - AO-5575A
Power Source (Single Phase) -   220~240V AC 50/60 Hz
Rated Power Consumption   - 950W
No Load Speed   -  520rpm
Hole Diameter    - 12-55mm
Plate Thickness -   9-75mm
Magnetic Holding Power  -  1,020 kgf
Weight   - 17.5 kg

ACCESSORIES
Standard Accessories

Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc
Chain Ass'y : 1 set
 Chip Breaker : 1 pc.
 Side handle ass'y : 1 set
 3mm / 5mm Hex socket screw key : 1 pc
 8mm x 10mm spanner : 1 pc
 Guard ass'y : 1 set

Optional Accessories

 OZBROACH: One-touch type: 25L,50L & 75L
 JETBROACH: One-touch type: 35L, 50L and 75L
Chuck adapter NPCHUCK ADPT AO5575A
 13mm keyed chuck NPCHUCK 13MM
Alternative SKU: TXYZ00409
Alternative SKU: 016815003



Part Number/SKU: AO-5575A

* Product Images are for illustration purposes only, unless otherwise specified colour may be different..
