Fume Extraction System 240V With Cyclone Technology 601.0071.1 Unit Only

Fume Extraction System 240V With Cyclone Technology 601.0071.1

The mobile fume extraction system FEC combines the highest suction output and intelligent energy-efficient functions with simple handling and also offers numerous advantages over standard suction devices:

Cyclone technology for particle pre-separation to
protect the filter surface reduced cleaning intervals
Integrated filter cleaning concept permanent filter can be cleaned easily and quickly
Contamination-free waste disposal of the welding dust by encapsulated de-dusting system and bag
With 25 kg and smooth-running full-cushion wheels perfect for variable application sites
 Robust & quiet due to thick-walled plastic case
Integrated automatic start-stop system reduces operation expenses and wear
Optional with start-stop-measuring caliper

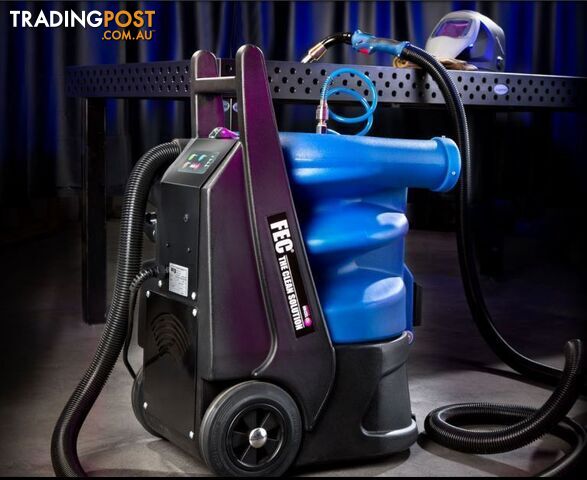

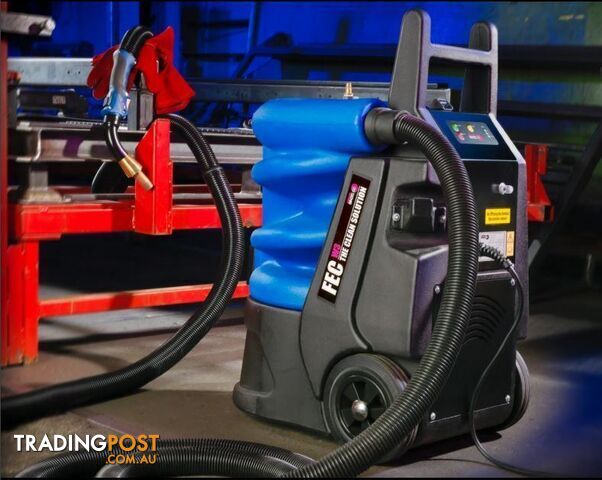

Mobile high vacuum extraction system.

As a mobile extractor the FEC is considerably more flexible and efficient than stationary, central or hall extractors. It extracts fumes that are created during welding with a high vacuum of 19,000 Pa, a market-leading suction output. Thanks to its low weight, stable base, secure stand, and the robust rollers with solid rubber tyres, the FEC is particularly suitable for everyday industrial use. The new FEC can be transported comfortably and quickly wherever needed.

New cyclone technology for a longer service life.

The FEC works with the highly efficient cyclone technology. This guides the extracted air through the filter container in an optimised flow and in circles. Particles contained in the air are pressed against the container wall through the centrifugal force, separating them upstream from the filter and depositing them in the FECs dust collecting drawer to reduce filter cleaning. The filter remains efficient for longer periods, and requires less cleaning.

Cleaning the permanent filter easily and quickly.

The new filter cleaning concept with an LED display makes the FEC particularly efficient. Instead of expensive disposable filters, a permanent filter is used that can be cleaned quickly and simply with a rotating cleaning lance operated by compressed air. The lance only has to be moved up and down a few times in the housing to remove the weld fume particles from the filter surface. These then fall down into the dust collecting drawer and can be disposed of as domestic waste. To prevent contaminated air from entering the hall, the exhaust duct of the filter cleaning system has a special bypass airflow with an integrated additional filter.

Integrated start-stop system for quiet operation.

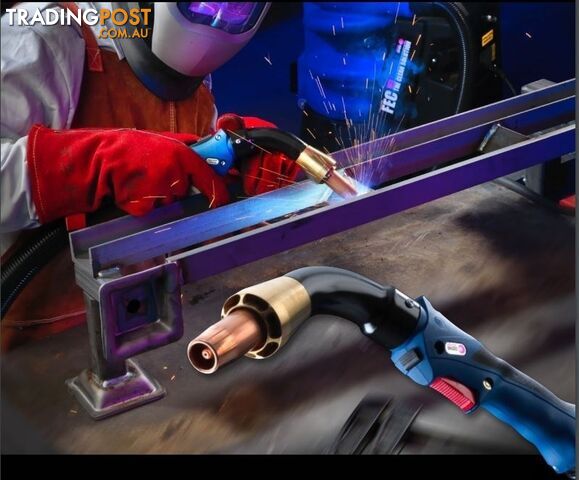

The FEC extractor can be connected to all standard air- or water-cooled fume extraction torches. It is coupled directly to the welding process via a standard integrated measuring shunt at the earth cable and an automatic start-stop system. When the user starts the welding process, extraction starts automatically. This reduces noise emission, saves energy, and lowers electricity costs.

Technical Data

Weight: approx. - 25 kg Max.
air flow: 230 m³/ h
Connection diameter: 50 mm
Max. vacuum: 19,000 Pa
Noise level: 76 dB(A)
Voltage: 230 V, 50Hz
Engine performance: 1.1 kW
Filter: permanent filter dust class M, 0.8 m²
Dimensions: length 590 mm; width 425 mm; height 825 mm

Unit only price - Need Gun




Part Number/SKU: 601.0071.1
