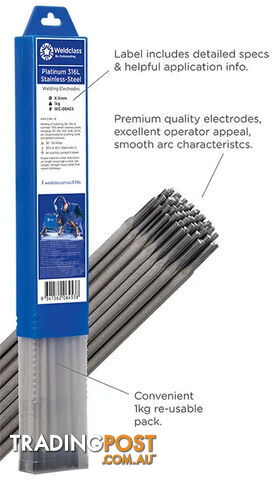

Stainless-Steel Electrodes 316L 2.0mm 1 Kg Weldclass WC-06453

STAINLESS-STEEL ELECTRODES 316L 2.0MM 1 KG WELDCLASS WC-06453

DESCRIPTION:

316L series Stainless-Steel welding rods for general purpose welding of matching 316, 316L & other common stainless steels, including; 300 series, 301, 302, 304, 304L, 3Cr12, 409, 444. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high-quality weld appearance. Classification: AWS E316L-16.

KEY FEATURES:

For general-purpose welding of common, matching stainless steel
Good resistance to pitting, acids, and general corrosion
All positional, except vertical-down
Smooth arc, low spatter, excellent slag control/detachability, and high-quality weld appearance
Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)

APPLICATION INFO:

Deposits Molybdenum bearing, 19% Cr / 12% Ni / 2.3% Mo filler metal to meet the requirements for welding AISI type 316 and 316L stainless steel in critical applications
For welding of matching 316, 316L & other common stainless steels, including; 300 series (301, 302, 304, 304L, etc), and ferritic stainless steel alloys such as 409, 444, and 3Cr12
Commonly used in; marine, winemaking, dairy & similar industries

OPERATING INFO:

All welding positions, excluding vertical down
Polarity: DC+ or AC+ (electrode +)
Minimum recommended OCV (open circuit voltage): 45V
Avoid high/excessive current
Use a straight "stringer" bead (rather than weave) technique

CLASSIFICATIONS:

AWS A5.4 E316L-16

TYPICAL PROPERTIES OF ALL WELD METAL:

Tensile strength 610 Mpa (N\mm2)
Yield strength 400 Mpa (N\mm2)
Elongation 38%
CVN Impact 75J @ -20c
Composition %: C0.025 Mn0.70 Si0.70 Cr18.50 Ni12.0 Mo2.30
Ferrite Number: 3.0-7.5 FN




Part Number/SKU: WC-06453
