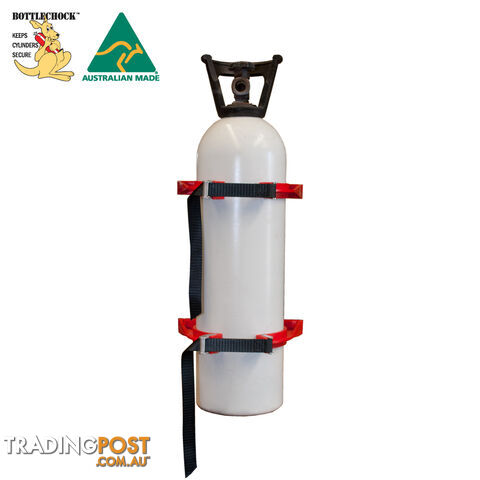

Bottlechock Cylinder Restraint 160-230mm E Size Medium 2 Cylinder Kit Stainless BST2M

BOTTLECHOCK CYLINDER RESTRAINT 160-230MM E SIZE MEDIUM 2 CYLINDER KIT STAINLESS BST2M

Kit Includes

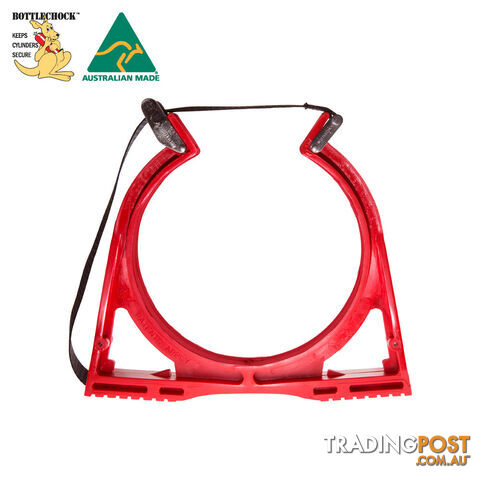

4 x Bottlechocks
2 x Wall Mount Brackets
8 x Securing R Pins



Features

Purpose designed to keep cylinders secure
Suits gas cylinders, oxygen tanks, fire extinguishers, oil drums etc.
Grips around and maintains full contact with the cylinder
Restricts both horizontal and vertical movement
In multiple fittings, BOTTLECHOCK secures each cylinder individually
Easy to install inside buildings or in vehicle trays using bolts (not supplied)
Quick cylinder changeover with one pull on straps
Flexible design makes it easy to snap cylinders into place
Quick release pins free up space when not in use, and allow use in another location

Construction

Kits include both top and bottom fittings, available with Red or Hi Vis Yellow chocks
Available in Single (Holds 1 cylinder), Double (Holds 2 cylinders), Triple (Holds 3 cylinders) or Quad (Holds 4 cylinders) Kits
Size (cylinder diameter): Small (100-145mm), Medium (160-230mm), Medium Large (230-310mm), Large (245-375mm)
Specialised Oxygen/Acetylene kits available in two sizes, in both galvanised and 316 stainless steel brackets

Technical Specifications

Flexible nylon chock material is UV stabilised during manufacture
All non-metal components are highly combustion resistant & self-extinguishing
All metal components (excluding mounting brackets) are manufactured from stainless steel
Brackets are available in either 1.6mm Galvanised Steel: for corrosion resistance) or 316 Stainless Steel (ideal for marine and specialty applications).



Part Number/SKU: BST2M

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
