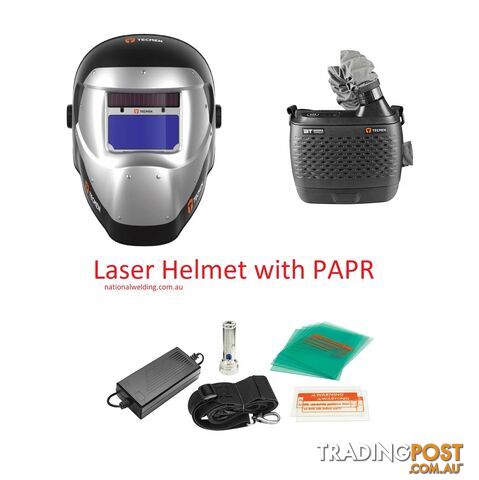

Freflow V1 PAPR With 100LW Respiratory Laser Welding Helmet Tecmen 703500

All-in-one integrated PAPR system for laser welding/cutting/cleaning. The 100LW helmet provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Meanwhile, the FreFlow V1 blower unit delivers a stable airflow to users with clean air.

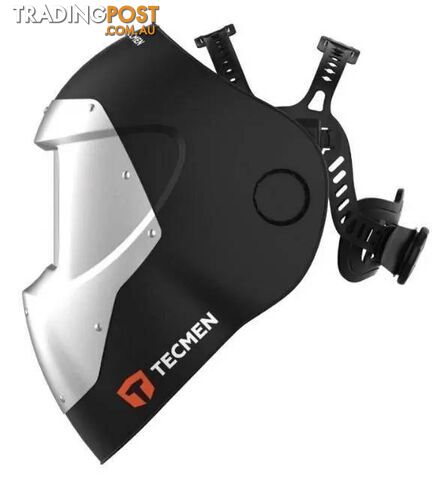

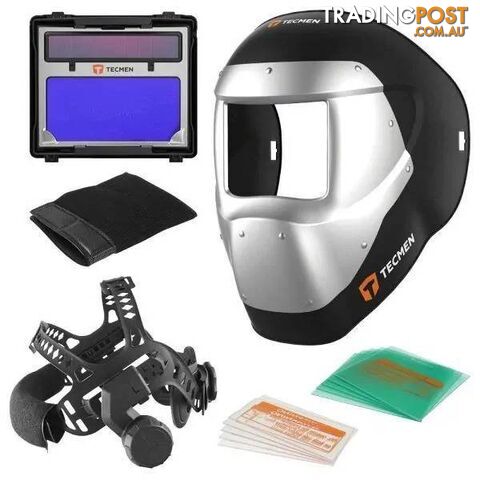

100LW Laser Welding helmet
ADF Model                            100LW
Optical Class                         1 / 1 / 1 / 2
Power On/Off                        Automatic On/Off
Light State                            Shade 2.0
Special Modes                     GRIND / CUT / MIX / DARK
Delay                                    0.1-1.0s,button control
Operating Temp.                 -10 to 5514 to 131
Helmet Material                   Special compound material
Optical Density(OD )           OD 8@1000-1100nm,OD 10+@1064nm

FreFlow V1 blower unit
Viewing Area                               96x46.5mm
Number of Sensors                     2
Dark State                                  4-8/8-12
Switching Speed                       1/25000s, from Light to Dart
Sensitivity Control                      Low-High,button control
UV/IR protection                        Up to Shade DIN 16 at all times
Storing Temp.                           -20 to 70-4 to 158

Laser Protection                      1000-1100 D LB7+ IR LB8
Approvals                               EN207, EN ISO 16321,EN12941 TH3



Part Number/SKU: 703500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
