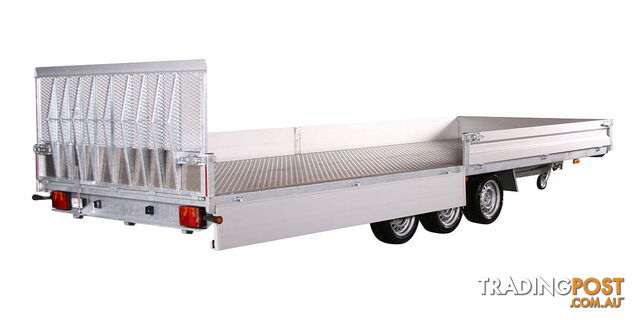

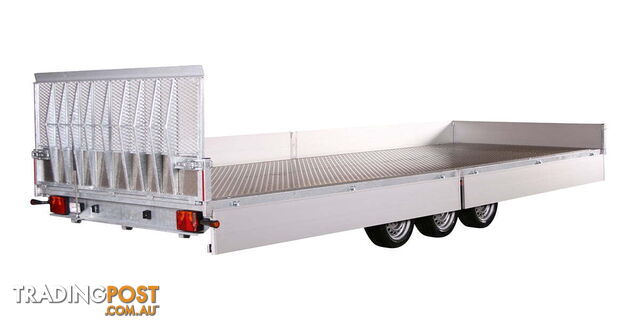

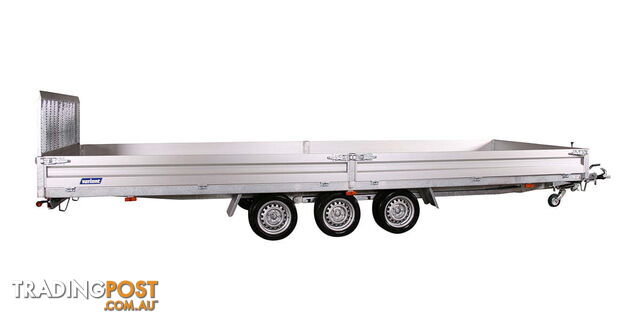

UNIVERSAL TRAILER 3563 UX €“ 6.2M X 2.1M €“ 3500KG TRI-AXLE

Variant Universal Tipper Trailers for sale. Tip Trailer model 3563 UX - 3,500 Kg - 6.20 x 2.10 Maxi- Load Trailer. Featuring fully welded and hot dip galvanised chassis with extreme high strength, leaf springs ensuring superb suspension, detachable sides and corner posts, coupling with built in lock for anti theft protection.

Out of our tipping trailers for sale, this trailer is from our Universal tipper trailer series, which are known for their tipper function, maxi load

For additional information, see the "Specifications" section above, or the Variant Trailers
website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason, we may not have all trailers in stock at the time of enquiry. Please remember whether it is a batch made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us
to order your trailer now!


Universal Trailer 3563 UX – 6.2m x 2.1m – 3500kg Tri-Axle for sale: key facts

The Variant 3543 UX
is a universal tilting flatbed trailer for sale at A2B Trailers, Erina NSW, rated 3,500 kg ATM with 1,164 kg tare and 2,336 kg payload. Hot-dip galvanised, with mechanical overrun brakes and no electric brake controller needed.


ATM:
3,500 kg

Tare weight:
1,164 kg

Payload:
2,336 kg

Internal size (LxWxH):
620x210x30 cm

Total size (LxWxH):
773x220x159 cm

Loading height:
65 cm

Wheels:
13" / 5 Studs / 6 Wheels

Axles:
3 Axles / With Brakes

Removable sides:
All 4 Sides

Side material:
Aluminium

Floor:
Phenolic Plywood 18mm

Tie-down points:
8 Hooks

Included:
13 or 7 Pin Plug / Gas Struts On Back Ramp / Jockey Wheel / Removable Corner Posts / Strong Tailgate Ramp 90cm

Tipping type:
Hydraulic Hand Pump Tilt / Hydraulic Tip



Best uses for the 3543 UX


Cars, utes and compact machinery with easy drive-on loading

Bobcats, scissor lifts and landscaping equipment

Long oversized materials and scaffolding



3543 UX frequently asked questions

What are the ATM, tare weight and payload of the 3543 UX?

The Variant 3543 UX is rated 3,500 kg ATM, with a tare weight of 1,164 kg and a payload of 2,336 kg. Check the payload against your load and your tow vehicle before you buy.

Do I need a brake controller to tow the 3543 UX?

No. Variant trailers use mechanical overrun brakes with an emergency breakaway cable, so no electric brake controller is needed.

Where can I buy the 3543 UX?

At our showroom at 2 Aston Road, Erina NSW 2250 on the Central Coast, or call (02) 4367 0026. We deliver Australia-wide.

Ready to buy? Contact A2B Trailers
or call (02) 4367 0026.
