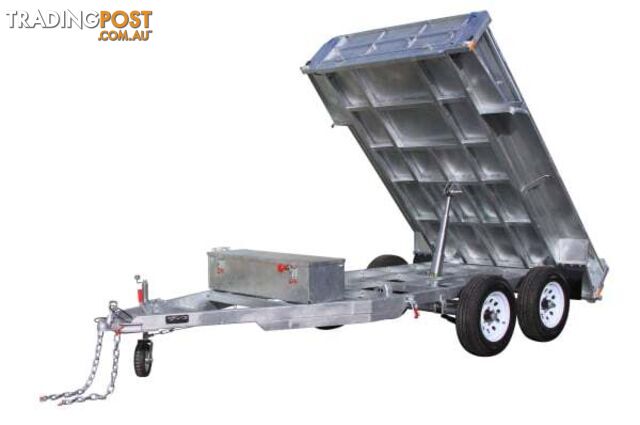

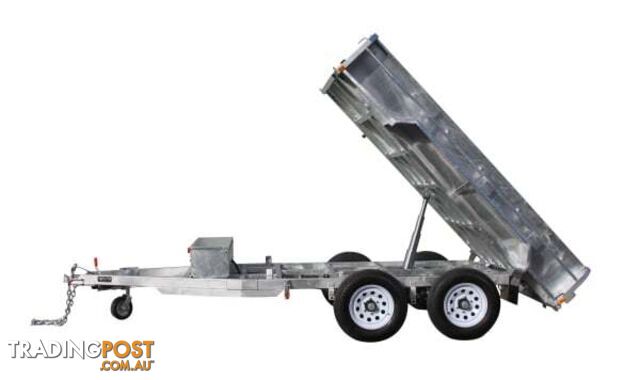

10 x 5 Hydraulic Tipper Box Trailer

Heavy Duty

Our 10x 5 Hydraulic Box Trailers will save you hours in manual work. The 4 stage hydraulic ram exceeds the payload and will increase your business's efficiency.

Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

The floor of the trailer is 2.5mm checker plate and the walls are also 2.5mm thick. Welded on 20mm round tie down rails will ensure your load doesn't shift. Its has 60mm solid round axles.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

All Trailers come with a 12 month warranty




Specifications

LOA: 4850MM
Width: 2127MM
ATM: 3500 kg
TM: 1070kg
Payload: 2430kg
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
12' Dual Axle Electric Drum Brakes
Breakaway System
Plug: 7 Pin Flat
Draw Bar: 100 x 50 x 2.5 mm
Frame: 70 x 50mm
Checker Plate Floor: 2.5mm Low Height
Side Panels: 2.5mm Thick
Axle: 60mm Solid Round
Bearings: Dexter
Tie Down Rail: 20mm Round
Dust Cap
Tyres: 195 R15LT
Rims: White 15 x 6 x 6 Stud
Springs: 60 x 7 x 7 Leaf
Fish Plate: 100 x 100 x 8mm
Lights: 2 x LED
Production: Fully Welded
Surface Treatment: Hot Dipped Galvanized




Price & Optional Accessories

10 x 5 Tandem Hydraulic Box Trailer
$8665

10 X 5 Box Trailer Cage
600MM $505
900MM $630

Cage Cover
600MM $375
900MM $425
Cover Supports $25

15' Spare Wheel $190
Spare Wheel Bracket $35

Jockey Wheel
10' $110

12 Months Registration & Stamp Duty
$477 - $522

Notes

The trailer requires a car mounted electric brake controller
A battery is required to operate the hydraulic ram
