Plant Trailer 10×5 3.5 Tonne

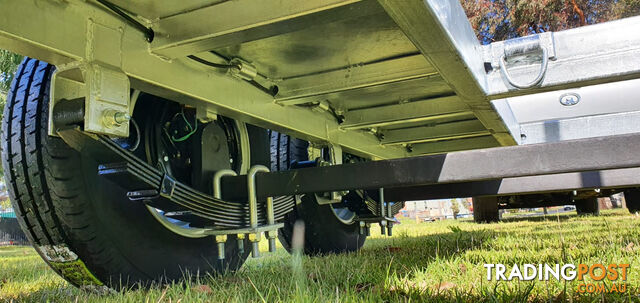

Features: 2.8mm Checker Plate Floor Single Piece 100x50x4mm Drawbar/Side Chassis Rail 2.2m long extended drawbar for bucket mount Temporary tie down rings positioned front and back (Six tie rings non load rated) Heavy Duty Roller Rocker 8 Leaf Suspension Reinforced spring hangers + middle gussets 50x50mm Solid square axles (Ford stud pattern) 100x50x4mm External Chassis frame 100x50x4mm (x2) Centered Chassis beams running length ways 50x50x3mm Cross Rails with 330mm spacing 1.8m long ramps made from 5mm C channel with stabilizing feet Gas struts fitted to ramps Electric drum brakes fitted to all four wheels 50mm Australian Standard Coupling ADR Standard Heavy Duty Chain & Load Rated Shackle Flat or Round 7-Pin Plug Please note Reinforcement plates are advisable on light trucks and rigid vehicles Dimensions & Weight (No Cage): Internal Size: L3150 x W1590 Overall Size: L4650 x W2020 x H480 Gross Vehicle Mass: 3500KG Net Weight: 800KG   Optional Extras: 14” Spare Light Wheel 12 Month Registration (VIC)
