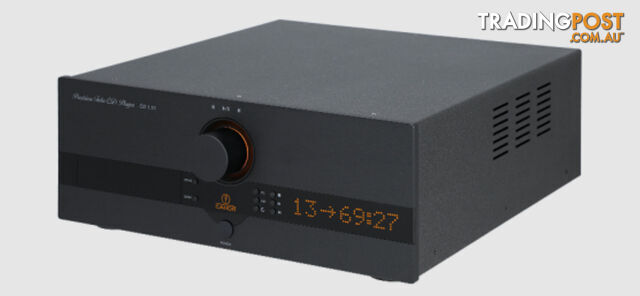

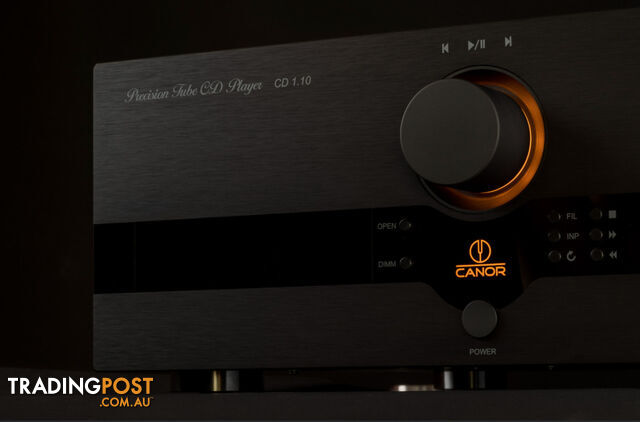

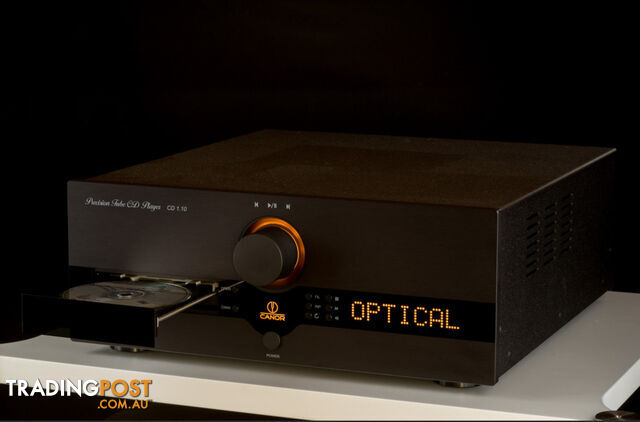

Canor CD 1.10 Tube CD Player / DAC

Meet the CD 1.10

The Premium Line Tube CD player and DAC from Canor
CANOR CD 1.10 compact disc player is up to the task and offers much more!

The aim of the development was to merge the best sound characteristics of previous models together. The amplifier operates in a pure class A with an auto-bias function, and with cathode feedback.

Highlights
Operates as a High Quality DAC
Contains two converters (one for each channel) galvanically separated from the digital part
The input transformer is oversized (low noise)
Converter

Canor CD 1.10 contains two converters (one for each channel), which are galvanically separated from the digital part.

Power (Input) Transformer

The power transformer of a Canor CD 1.10 is oversized, which leads to low radiation and low noise.

Voltage Stabilisation Unit

Canor CD 1.10 contains a voltage stabilisation circuit (VSC), which watches the value of input voltage in real-time and automatically switches the adequate input on the input transformer (with several primary windings). This leads to better performance and prolongs the tubes lifetime.

Product Features
Tube DA converter / CD player
Standalone 24-bit / 192kHz DA converter for each channel
High-quality CD drive with compact discs ejection bearing driving mechanism
PCBs utilise Canor's premium CMT technology
Super symmetrical passive filters optimised for the highest steepness
PCM 44.1 kHz - 192 kHz playback and DSD64, 128, 256
Technical Specifications

Frequency Range

(20 20 000) Hz ±0,8 dB

Output Impedance
Total Harmonic Distortion
Signal-to-Noise Ratio
> 102 dB (20 Hz - 20 kHz)

Outputs
RCA / XLR

Analogue output voltage RCA / XLR
2.5 V RMS
5 V RMS

Digital Inputs
USB
Optical
Coax

Digital Outputs
Optical and Coaxial

Tube Complement
2 x 12AX7
2 x 6922
1 x 6CA4

Power
230 V / 50 Hz / 100 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
17 Kg
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
