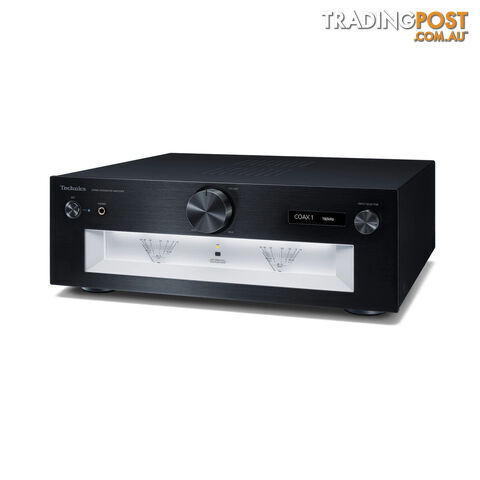

Technics SU-G700M2E Grand Class 2 Channel Stereo Amplifier

Technics SU-G700M2E Grand Class 2 Channel Stereo Amplifier
A long, long list of features including:
JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
In order to faithfully transmit the massive amount of audio data sent to the speakers without loss, the SU-G700M2 power amp section uses full digital amplification employing the JENO Engine, based on the design concept of reference systems. To solve the issue of sound quality degradation due to jitter, which poses problems for conventional digital amplifiers, the SU-G700M2 has an original jitter reduction circuit that eliminates jitter over the entire audible frequency range.
A unique, high-precision PWM (Pulse Width Modulation) conversion circuit is used, which is important for sound quality. By optimising items such as the noise-shaping speed, degree, and quantisation number through our unique expertise, data even in the wide dynamic range contained in high-resolution sound sources is converted to PWM signals without loss. These technologies provide reproduction of natural and finely detailed sound, enabling perception even of delicate music nuances.
LAPC (Load Adaptive Phase Calibration)
The SU-G700M2 Amplifier includes a speaker impedance adaptive optimisation algorithm that sends the ideal impulse response through digital signal processing by measuring the frequency amplitude-phase characteristics of the amplifier with the speakers connected.

This new technique enables a flattening of the frequency characteristics of the amplitude and phase, which had previously not been achieved by amplifiers, as well as delivering a sound with rich spatial expression.
Advanced Speed Silent Power Supply
The power supply technology incorporated in the reference-class model SU-R1000 has been employed for improved speaker drive power and a greater feel of energy. Switching frequency has been increased from the conventional 100kHz band to the 400kHz band to ensure stable supply of voltage and current and to reduce adverse effects of modulation noise on the audio quality. The device is equipped with the same GaN FET and SiC SBD as those mounted in the SU-R1000 to deliver maximum performance from the high-speed switching power supply system.

Whats more, a Super Low Noise Regulator is provided in the later stage. It prevents the decrease of regulation due to fixed switching frequency and impedes the mixing of noise component into high frequencies. The result is a low-noise and high-response power supply that maximises the performance of the digital amplifier.
Three-section Configuration
In integrated amplifiers there are a variety of circuits, including circuits that handle the micro-signals of inputs and those that handle a large current, such as output circuits and power-supply circuits. The SU-G700M2 uses a three-section construction with partitions installed between the circuit blocks according to the signal level handled.
This eliminates interference between circuit blocks, thus achieving clear sound quality. In addition to the three-section construction, the SU-G700M2 comes with a bottom chassis featuring a two-layer construction with 1.2-mm-thick and 2-mm-thick steel plates, a top panel made of a 1.6-mm-thick steel plate and a 7-mm-thick aluminium front panel for improved vibration damping.
Low-noise PHONO Input
PHONO MC input is now supported. The PHONO input achieves low noise by using a differential parallel connection configuration of a first-stage, low-noise FET. In addition, four-level gain adjustment enables selection of the best gain according to the cartridge output. This enables optimal playback of high-grade analogue recorded sound sources tailored to the users environment.
Class AA Headphone Amplifier
THE SU-G700M2 uses a Class AA headphone amplifier with separate circuits for voltage and current amplification of the audio signal. The voltage is amplified by a high-grade operational amplifier, the current is amplified by an operational amplifier with high current-supply capability, and the high-grade PWM signal output from the JENO Engine is converted to analogue with high precision, thus enabling headphones to be ideally driven.
This makes it possible to reproduce music with low distortion and a wide frequency range no matter what the load impedance of the headphones is.
Specifications:
Output Power
70W + 70W ( 1kHz, T.H.D. 0.5 %, 8, 20kHz LPF )
140W + 140W ( 1kHz, T.H.D. 0.5 %, 4, 20kHz LPF )
Load Impedance

4-16

Frequency Response
Phono MM: 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8 )
Phono MC: 20Hz - 20kHz ( RIAA DEVIATION ±1dB, 8 )
Line Input: 5Hz - 80kHz ( -3dB, 8 )
Digital Input: 5Hz - 80kHz ( -3dB, 8 )
Input Sensitivity
Phono MM: 2.5mV
Phono MC: 300uV
Line: 200mV
Input Impedance
Phono MM: 47 k
Phono MC: 100
Line: 22 k
Analogue Input Terminals
2x Line Level RCA Inputs
1x Phono RCA Input with Ground (MM/MC)
Digital Input Terminals
2x TOSLink Optical
2x RCA Coaxial
1x USB-B
Analogue Output Terminals
1x Line Out
1x Pre Out
Headphone Output
Stereo 1/4" Jack
PC (USB-B)
USB 2.0 high-speed
USB Audio Class 2.0, Asynchronous mode
Supported Sample Rates and Bit Depths
PCM: 16Bit, 24Bit, 32Bit. 32kHz up to 384kHz
DSD: 1Bit, 2.8MHz up to 11.2MHz
DSD Control Mode
ASIO Native Mode
DoP Mode
Power Supply

AC 220 V - 240 V, 50/60 Hz

Power Consumption
95W PEAK
Dimensions
430mm Width
148mm Height
328mm Depth
Weight
Approx 12.6kg
Accessories
AC Power Cable
Remote Control
Batteries for Remote Control
Owner's Manual
