Rotel RB-1581 Monoblock Power Amplifier

The RB-1581 mono block amplifier powers even the most demanding speakers yet accurately reproduces the details of your audio.

500 Watts of
robust power

Class AB amplifier
design

High-quality slit foil
capacitors made in
Britain

Balanced XLR input

12 volt trigger
input

DIMENSIONS (W × H × D)
431 × 144 × 407mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
550W

STANDBY POWER CONSUMPTION
0.5W

NET WEIGHT
17.1kg (38lbs.)
CONTINUOUS POWER OUTPUT
500W/Ch (20Hz-20kHz,

TOTAL HARMONIC DISTORTION (THD)
(20Hz20kHz)

FREQUENCY RESPONSE
10Hz - 100kHz ±1dB

GAIN
RCA: 32dB

The RB-1581 is the ultimate in Class AB power amplification delivering a massive 500 watts of output into 8 ohms. This mono block amplifier powers even the most demanding speakers yet accurately reproduces the details of your audio.

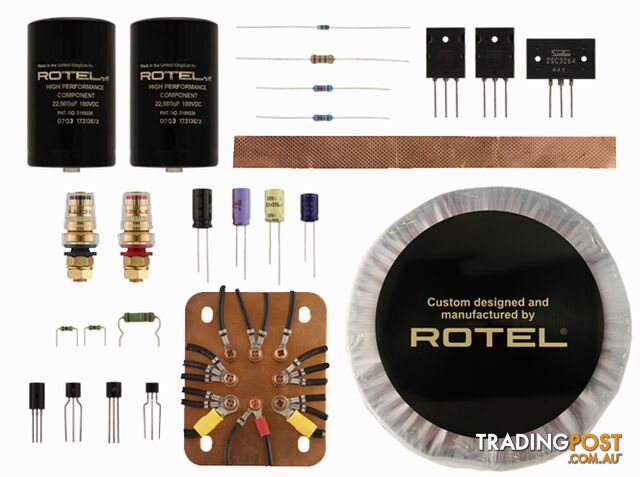

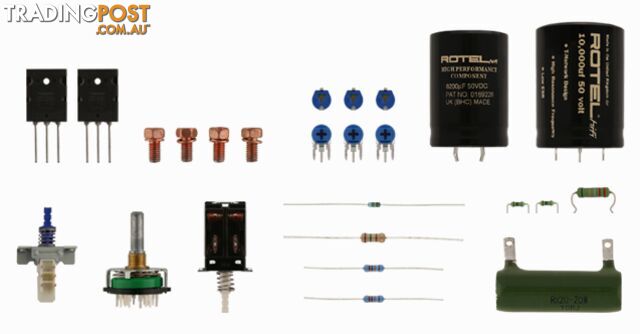

Utilizing the Rotel Balanced Design Concept in the PCB circuit layout, custom designed and Rotel factory build oversized toroidal transformer, high efficiency slit foil capacitors in the power supply and discrete power transistors the RB- 1581 is pure performance.

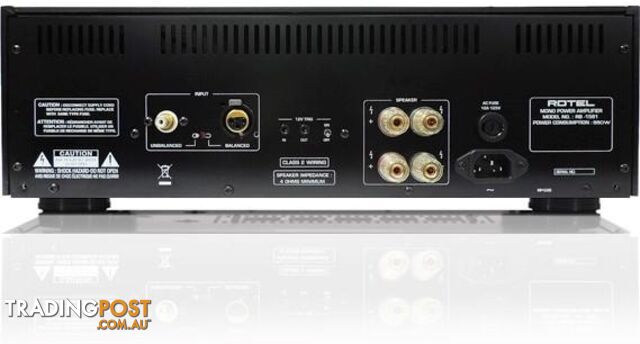

The RB-1581 includes a rear panel mounted mechanical switch to select Balanced XLR or traditional single ended RCA inputs for ultimate connection flexibility. There are 2 sets of 5 way speaker binding posts supporting bi-amplification. A detachable IEC power cord and selectable 12 volt trigger with daisy chain output allows custom installation with ease..Variant: Black
