ProJect Phono Box DS3 B True Balanced Preamplifier

DS3 B Phono Preamplifier

LIMITED STOCK AVAILABLE

A Broad Array of Cartridges Await

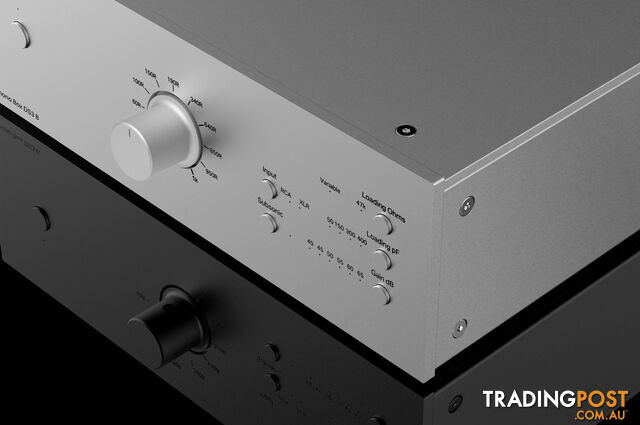

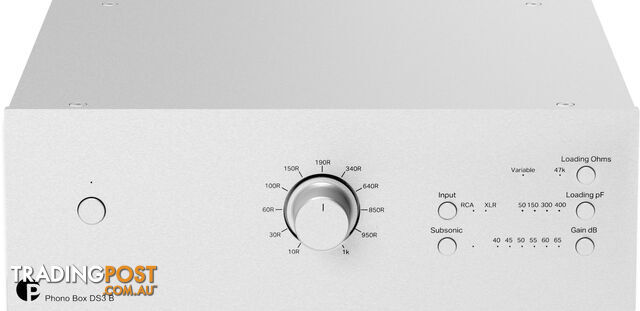

The Phono Box DS3 matches superbly to a wide range of cartridges thanks to precise load impedance adjustment on the front panel for moving coil cartridges. Because the impedance can be adjusted so easily and in real time as a record is playing, getting the exact setting for your taste is simple.

High End Design

The Phono Box DS3 B incorporates a fully balanced gain stage design. Whether you're using a single-ended RCA or balanced connection, the fully symmetrical gain stage can optimise signal-to-noise ratios, feeding the fully passive and discrete RIAA equalisation stage with the cleanest signal to work its magic on. Entirely split passive equalisation allows for better impedance matching and lower deviation from the ideal RIAA curve.

Elsewhere, the Phono Box DS3 B uses fully discrete audio circuitry. A discrete circuit is composed of disparate, individual electronic components, also called discrete components. Years of experience have proven that even the best Op-Amps do not come close to the neutral, natural, dynamic, and vivid presentations of discrete circuitry.

True Balanced Connection

The Phono Box DS3 B offers the option of running a fully balanced signal. And the best part is that thanks to a range of new cables from ProJect, these inputs can be used with any ProJect turntable, whether it has RCA or 5P XLR outputs.

However, to truly utilise the balanced circuitry, aProJect turntable with a moving coil cartridge and 5P output can be connected to the Phono Box DS3 B with a 5P to XLR cable. The decreased noise and interference and improved dynamics have to be heard to be believed.

Technical Specifications
Input impedance: Stepless 10 – 1000 ohms or fix 47kOhms
Input capacitance: 50, 150, 300, 400 pF
Gain (+ 6dB using XLR Out sockets): 40, 45, 50, 55, 60, 65 dB
Signal / Noise ratio MM (40dB): 104dBV, 111dBV - ‚A‘ weighted
Signal / Noise ratio MC (60dB): 85dBV, 91dBV - ‚A‘ weighted
THD at 1 kHz:
THD (20Hz-20kHz):
RIAA-equalization curve accuracy:
Subsonic filter: at 20Hz with 18dB/octave

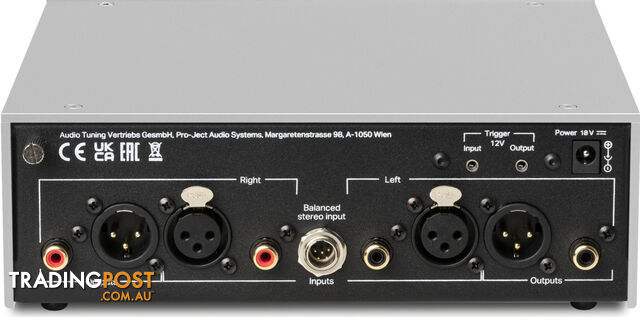

Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
Line-level output: 1x pair RCA, 1x pair XLR
Wiring XLR sockets: 1 ground, 2 “hot” and 3 “cold”
Trigger In/Out: 12V on/off detector
Power supply DC: 18V/500mA
Power consumption: 18V/max.290mA DC,
Dimensions: 206 x 72 x 194 (205 with sockets) mm
Weight: 1480g without power supply



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
