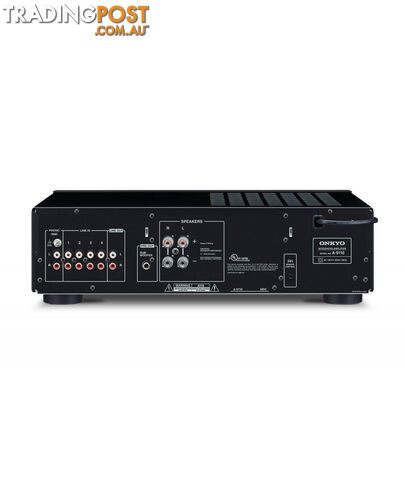

Onkyo -A-9110 Integrated Amplifier

Stable high-current power with wide-range amplifiers

Dynamic changes in music cause impedance to fluctuate. If power can't be delivered when impedance drops, sound quality suffers. Onkyo's solution is WRAT, specifically its high-output EI transformer, huge custom-made main audio capacitors, and carefully selected high-quality parts. High-current stability controls the speaker drivers for accurate and assured reproduction of dynamic musical passages. Further, the A-9110 features Onkyo's time-proven low-negative-feedback amplifier topology that distinguishes the timbral warmth, fullness, and vibrancy of the recording. This circuitry captures a wide frequency spectrum with uncommonly low distortion.

Sounds clearer at low volumes

When playing music at a low volume, the signal normally drops close to the component's noise floor. The signal picks up noise, which is amplified, and the result is a muffled sound. To avoid this, the A-9110 features Optimum Gain Volume Circuitry, a volume circuit that requires less than half the usual amount of attenuation. The signal never approaches the noise floor, so you can enjoy the clearest sound at a low volume.

Phase Matching Bass Boost enriches sound at low volume

Most pre-main amps have a loudness button designed to boost low-mid frequency sound. However, conventional designs are prone to phase-shift, which degrades the clarity of the vocal frequency band. Onkyo's Phase Matching Bass Boost function eliminates phase-shift between low- and mid-range frequency bands above 300 Hz. Bass response is enhanced without compromising vocal clarity, and that's something especially useful when playing music at a low volume where bass and high-frequency sounds are more difficult to hear.

Thick and rigid chassis tames resonance

Every hi-fi component generates electromechanical resonance. This translates into signal noise, and that impacts the sound coming out of your speakers. To combat the negative effects of vibration, the A-9110 features a rigid metal chassis that's 1.3 times thicker than the A-9010 at 1/16" (1.6 mm). Working together with large, wide-spaced insulators, unwanted resonance is virtually eliminated.



Features

Stable high-current power with wide-range amplifiers

Sounds clearer at low volumes

Phase Matching Bass Boost enriches sound at low volume

Thick and rigid chassis tames resonance



Specifications

Brand ONKYO

Color Black

Power Amplifier Speaker Channels Stereo

Frequency Response 10 Hz - 100 kHz

Watts RMS per Channel (4 ) 50 Watts + 50 Watts

Input Sensitivity 200 mV (Line) | 4 mV (Phono MM) | 0.2 V (Line out)

Input Impedance 47 k (Line) | 47 k (Phono MM) | 2.3 k (Line out)

Signal-to-Noise Ratio 103 dB (IHF-A, Line In, Speaker Out) | 78 dB (IHF-A, Phono In, Speaker Out)

Total Harmonic Distortion (THD) 0.05 %

Phono Input Yes

RCA Input 4

RCA Output 1

Subwoofer Outputs 1

Warranty Australian Manufacturer Warranty

Dimension

Product Dimension (H×W×D) 129 × 435 × 330 mm

Product Weight 7 Kg.Variant: Default Title
