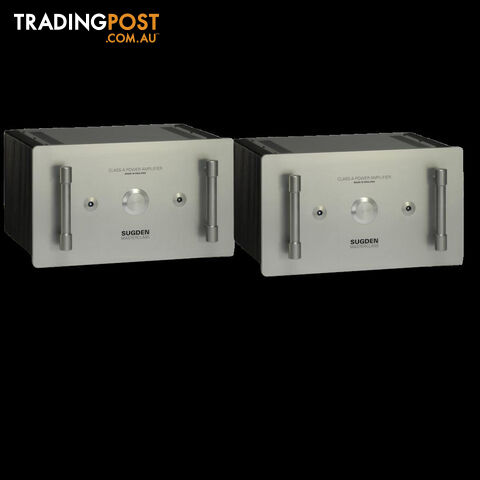

Sugden Masterclass MPA-4 Power Amplifier Pair

Meet the Masterclass MPA-4 Power Pair

Class A Symmetrical Balanced Mono Power Amplifiers  165 watts

The Sugden Masterclass MPA-4 Class A Symmetrical Balanced Mono Power Amplifiers have been developed to present a holographic three dimensional soundstage where the listener can almost walk in and touch the musicians.Tremendous headroom is available in which to develop a wonderfully dynamic portrayal of music in all of its moods.

The MPA-4 has facilities for asymmetric (Phono/RCA) or balanced inputs (XLR); the latter utilising a virtual transformer (discreet) balanced input circuit.The power amplifiers are symmetrical, current feedback, DC-coupled, gain stages with servo controlled DC off-set and multi emitter output devices.

In the balanced mono amplifiers the two power output stages of the stereo power amplifier are connected in balanced mode giving a mono amplifier.The mono power amplifiers give single channel power twice that of the stereo power amplifier.

Among some of the gains of the balanced configuration are a much lower noise floor, even greater dynamics and a rock solid musical sound stage.

Product Features & Specifications

Inputs
Mono Balanced

Outputs
Single pair multi way locking binding posts

Input Sensitivity
1 Volt for full output

Power Output
165 watts into 8 ohms both channels working

Frequency Response
15Hz to 30 kHz +/-0dB

Bandwidth
2Hz to 200kHz -3dB points

Signal to Noise
>85dB

Nett Weight
50kg (25kg each)

Overall Dimensions including terminals  (H x W x D)
250 x 430 x 360 mm by two amplifiers



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
