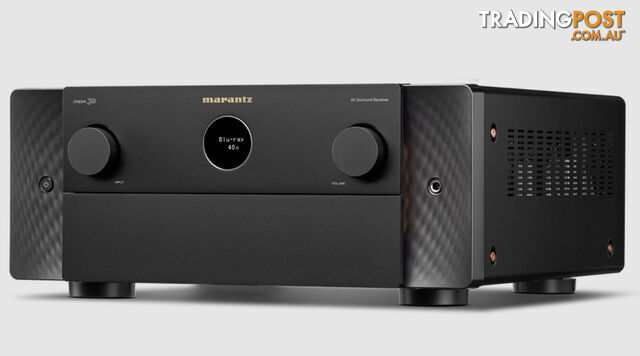

Marantz Cinema 30 11.4 Channel AV Receiver

We'd like you to meet the Cinema 30 11.4 Channel AV Receiver

Reference 11.4 Channel from Marantz - where excellence begins and ends with performance...Winner, What the Hi-Fi? Best Home Cinema Awards 2025

CINEMA 30 is the most refined AV Receiver Marantz has created and redefines premium home theatre sound. Engineered with proprietary technology optimised from decades of rich heritage, its 11.4 channels deliver unrivalled performance and can power even large-scale home theatres with ease.

Engineered To Perform
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.
Timeless, Modern Style

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.

Engineering Without Compromise

HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.

Sound Master Tuned and Calibrated for You

HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.

Technology Leader

Seven HDMI inputs, plus digital, analog, and phono inputs even analog video plus loudspeaker and pre-amp outputs ensure connectivity to virtually any components you have

Key Features
Crafted in Shirakawa, Japan
140 Watts per Channel
7 HDMI Inputs (all 8K) plus eARC
8K & Dolby Atmos
High Power & Low Distortion
11 Channels & Countless Configurations
No Compromise Engineering
Sound Master Tuned & Calibrated For You
Dolby Atmos® and Dolby Atmos Height Virtualisation Technology
DTS:X® and DTS Virtual:X
High-Resolution Audio Support
HEOS® Built-in
Roon Tested
HDMI ARC/eARC
8K HDMI Connectivity
Advanced Audyssey MultEQ XT
Class A/B Amplifier Topology
Google Voice Assistant
Technical Specifications
Power Amplifier
Number of Powered Channels - 11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive -
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) - 140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 175 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) - 250 W
70% Guarantee - Yes
Discrete Power Amplifier - Yes
Amplifier Topology - Class A/B
Current Feedback Topology - yes
Bi-Amp  - Assignable
Multichannel Surround Technologies
DTSDTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual: - X
Dolby - Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround
Others
Max Number of Processing (Preamp) Channels - 13.4
IMAX Enhanced - Yes
Auro 3D - Yes
Audyssey DSX - Yes
Multichannel Stereo - Yes

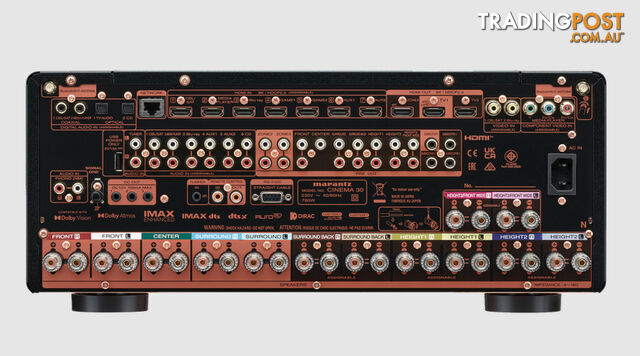

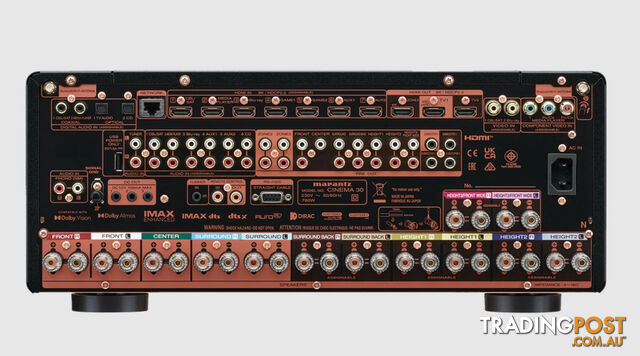

Inputs Outputs
Composite In / Out - 2 / 0
Component In / Out - 1 / 0
HDMI In / Out - 7 / 3
Multi-Room Video Out via HDMI - 0 / 0
Analog In / Fixed Level Out - 3 in / 0 out
Phono (MM) In - Yes
Digital In: Optical / Coaxial - 2 / 2
Multi-Room Out: analog / digital - 2 / 0
Multichannel Preamp Out - 7.2
Subwoofer Out - 4 (independent)
7.1 multichannel input - No
Number of Speaker Terminals - 13
Speaker A / B - assignable
Multi-Room Speaker Terminal - assignable
Front Inputs - USB-A
USB Audio - Yes / No / No
FM Tuner with RDS - Yes
DAB+ Tuner - No
Multi-Room Video Out: Video / HDMI - 7/3
analog In/out - 6 / 0
Multichannel Pre Out - Yes (13.4)
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - No / No / No / No / Yes
HDMI
Total HDMI Inputs / No. Support 8K - 6 / 3
HDCP2.3 support - Yes
HDMI Outputs: Main / Zone - 2 / 1
Analog to HDMI Video Conversion - No
HDMI Upscaling - 1080P/4K to 8K
Max resolution @ frame rate
Audio Return Channel - ARC, eARC
Video Dynamic Range - HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming - Yes
Variable Refresh Rate / Quick Frame Transport - Yes / Yes / No
HDMI Pass-Through in Standby Mode - Yes
CEC - Yes
DSD Audio over HDMI - No
Auto LipSync - Yes
HDMI Inputs: Back / Front - 7 / -
Video Conversion Analog -> HDMI - Yes
HDMI to HDMI Scaling - 1080P/4K to 8K
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB - Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out - 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC - Yes / Yes / Yes / Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR - Yes / Yes / Yes / Yes / Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching - Yes / Yes / No
8K signal pass-through / scaling / GUI overlay - o / o / o
4K Signal Pass-Through / Scaling / GUI Overlay - o / o / o
DSD Audio Capability - Yes
Performance Technologies
Copper Plated Chassis - Yes
Toroidal Power Supply Transformer - Yes
Hyper Dynamic Amplifier Modules (HDAM) (List version) - Yes
Pure Direct Mode - Yes
Gold Plated RCA Terminals - Yes
Clock Jitter Reducer - Yes
Acoustic Room Correction
Audyssey - MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume - Yes / Yes
Audyssey LFC - Yes
Dirac Live Support - Yes
Variable Cross Over - Yes
Optimised Bass Redirection - Yes
Bass Sync - Yes
Dirac Live Upgradability - Yes
Music File Support
Lossy Formats - MP3 / WMA / AAC
Lossless formats - FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio - 2.8 MHz / 5.6 MHz
Gapless Playback - FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 - Yes
Network Audio Sharing - Yes
Streaming Services
HEOS Multi-room and Streaming - Yes
AirPlay Audio StreamingAirPlay - 2
Internet Radio - TuneIn
Spotify - *Spotify Connect
Pandora - No
SiriusXM - Yes
Other Streaming Services - *Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested - Yes
Network Connectivity
Ethernet Ports - Yes
Wi-Fi (include version / band) - Yes
Bluetooth (Include version) - Yes
Bluetooth Re-transmit for Bluetooth headphones - Yes
Smart Home Integration and Control
Voice Assistant Compatibility - Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) - Marantz AVR App
HEOS Multi-Room Integrated - Yes
HEOS Link Compatibility: IR/ IP - Yes /Yes
Multi-Room zones - 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - 2 Ch / 2 Ch / Yes/Yes
Zone Audio Output: Speaker / Preout - Yes / Yes
Zone HDMI Output from HDMI Source - Yes
Control ConnectivityIP Control / RS232 Control / Web Control / App Control
IR Flasher In - Yes
Marantz Remote Bus - Yes
DC Trigger Output - 3
HDMI Diagnostics - Yes
Other
Marantz Cinema 30 11.4 Channel AV Receiver
GUI Overlay on HDMI
CEC - Yes
Auto Speaker Setup by Microphone - Audyssey MultEQ XT32Dirac Live (upgrade)
Graphic User Interface - GUIModern HD GUI - Modern HD GUI
Smart Select - Yes
General
Available Colours - Black/Silver-Gold
Metal Front Panel - Yes
System Remote Control - RC-051SR
Power Consumption in W - 780
Power Consumption No-Sound (ECO on/off) in W - 65 W / 110 W
Standby Consumption in W - 0.2
CEC Standby Consumption in W - 0.5
Network Standby Consumption in W - Less than 2.0
Pre-Programmed / Learnable / LCD Display - Yes / Yes / Yes
Maximum Dimensions
Antenna: Horizontal:(W x D x H) in mm -  442 x 457 x 189
Antenna: Vertical :(W x D x H) in mm - 442 x 457 x 257
W/o Antenna: (W x D x H) in mm  - 442 x 447 x 189
Weight in kg - 8.7
In The Box
Main unit
Remote control & batteries
AM/FM antennas
Wire labels
Quick start guide
Audyssey microphone
Cardboard microphone stand
2 External Detachable Antennas
AC cord
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
