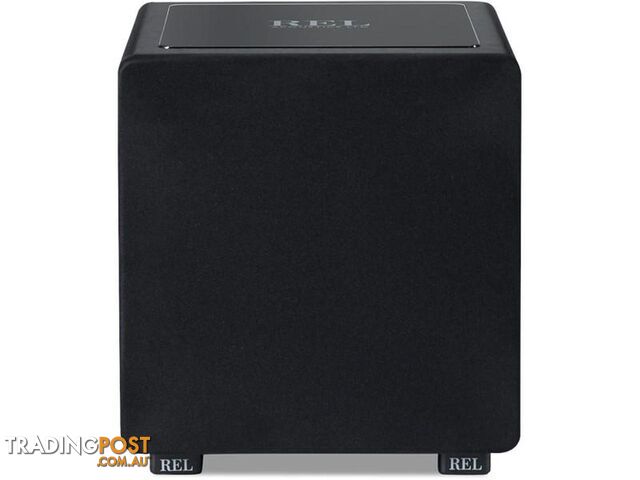

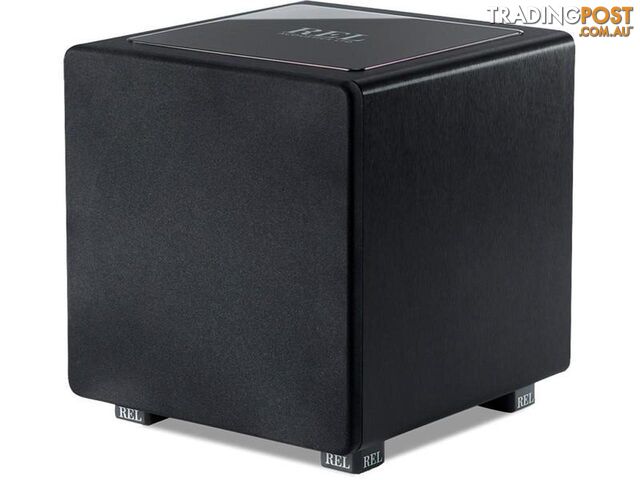

REL HT/1205 Subwoofer

HT/1205 home theater subwoofer delivers a brand new 500W Class D power amplifier design, coupled to a 12 (300mm) long travel driver to deliver extremely high output in an attractive design. HT is a powerhouse for dedicated high powered home theater applications, that will also transform the gaming experience and partners nicely with active wireless speakers.

The cabinets width is minimized reducing visual mass, whilst depth is maximized to produce the deepest bass. We selected tough, high-grade, horizontally oriented line-grained composite to wrap the entire cabinet, which offers easily handled, easy cleaning. This more basic design vocabulary differs from the more refined finishes found in our other lines, however the top surface that catches ones eye is beautifully finished in 5 coats of hand rubbed lacquer, creating the visual appeal weve come to be known for.

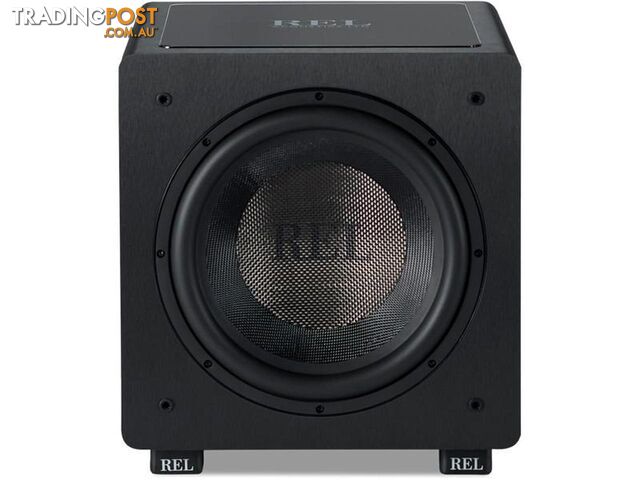

TWELVE-INCH CARBONGLAS DRIVER

RELs driver prowess is on full display with the HT/1205, a modern 12 CarbonGlas (300mm) driver that is both lightweight and extremely stiff. While many competitors drone along with relatively slow, heavy cones HT/1205s uses tough, stiff carbon fibre over 60% of the driven surface, backed by lightweight glasfibre. Naturally, we use true high quality natural butyl surrounds as they remain soft and pliable for decadessomething REL owners have come to expect. HT/1205s new 12 CarbonGlas driver sets a new standard for affordable, high performance theater-specific drivers.

WARN THE NEIGHBOURS, IT'S MOVIE NIGHT

500 Watts: To accomplish our single-minded goal of exceedingly high output for large-scale theater applications requires a special amplifier. Our NextGen5 Class D amplifier frees up interior space whilst running cool; this results in more cabinet volume and that translates into louder and deeper bass. 500 watts means the driver never is allowed to starve for power ensuring a long running, reliable design. Within HT-1205s input filter, we designed in specific inverse filtering to permit our CarbonGlas driver to extend much deeper than traditional designs.

ZERO COMPRESSION WIRELESS COMPATIBLE

There is wireless and there is REL wireless. We are well-known for having the finest wireless purpose-built systems in the entire component audio world. Though HT-Air is affordable, it retains our corporate fixation on zero compression and maximum dynamics. HT-Air is designed to leave old fashioned Bluetooth-based systems in the dust, delivery latency in the 16-20 millisecond range. This permits owners to place your HT/1205 where it works best for you without resorting to unsightly cables being strewn across the landscape of your living room, all while retaining our category-leading super-fast wireless.

The wireless transmitter is optional and not included with this subwoofer.

:
TYPE

Closed box, front-firing driver

ACTIVE DRIVER SIZE & MATERIAL

12 in., 300mm long-throw, CarbonGlas cone structure, inverted carbon fibre dust cap, steel chassis

PASSIVE RADIATOR SIZE & MATERIAL

NA

LOW FREQUENCY EXTENTION

-6dB at 22 Hz

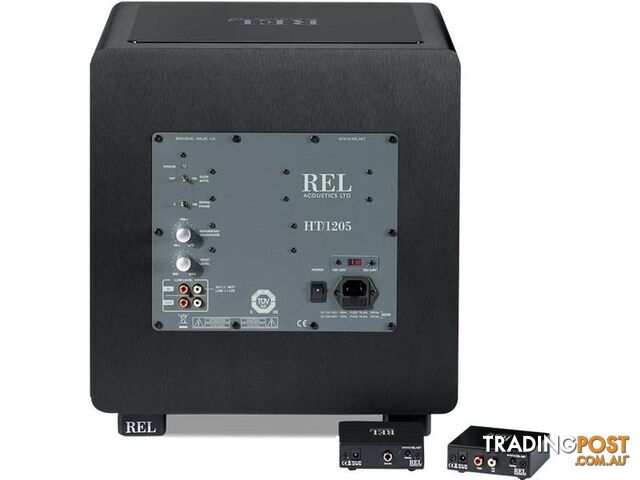

INPUT CONNECTORS

Dual purpose Low Level stereo RCA or LFE RCA

OUTPUT CONNECTORS

Daisy Chain Low Level stereo RCA or LFE RCA

POWER OUTPUT

500 watts (RMS)

AMPLIFIER TYPE

NextGen5 Class D

WIRELESS CAPABILITY

HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip

PROTECTION SYSTEM
FULLY ELECTRONIC SET SAFE

Yes

D.C. FAULT

Yes

OUTPUT SHORT

Yes

MAINS INPUT VOLTAGE

220-240 volts, 110-120 volts for certain markets

FUSES

8 Amp semi delay 230 or 115 volts operation

DIMENSIONS
W X H X D

15 x 16 x 15.7 in. (376 x 405 x 399 mm)

NET WEIGHT

38 lbs. (17.2 kg)

FINISH

Line Grained Black Composite

SUPPLIED ACCESSORIES
MAINS LEAD

Yes

NEUTRIK SPEAKON

NA

INTERCONNECT

No

USERS MANUAL

Yes.Variant: Default Title
