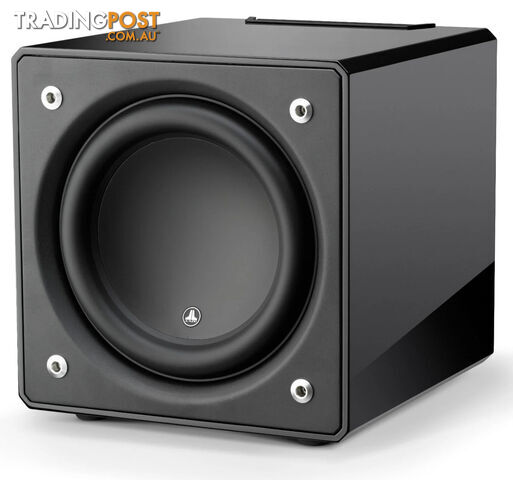

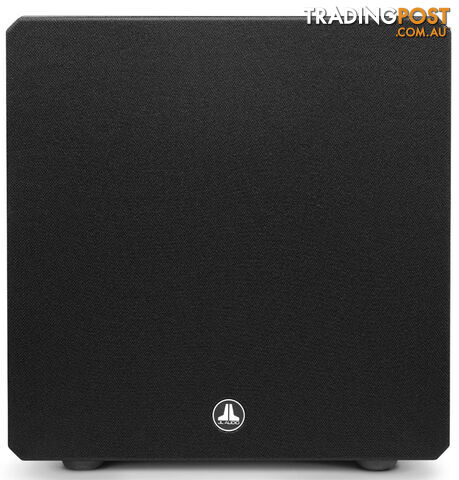

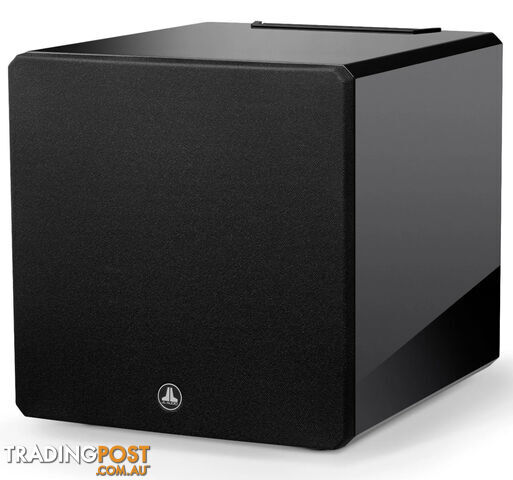

JL Audio E-Sub E112 12-inch Subwoofer

We'd like to introduce you to the E-Sub e112

12-inch Subwoofer, 1,400 watts of pure unadulterated Power!

Applying a series of key technologies, E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of demanding applications.

E-Sub drivers employ JL Audio's exclusive DMA technology to optimise the drivers' motor strength, ensuring linear behaviour over a very long excursion range. Unlike typical steady-state modelling systems, DMA takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material.

The payoff offered by DMA optimisation is a driver that faithfully tracks its input signal, at all listening levels, leading to superior bass definition and dynamics.

The extreme mounting depth of the E-Sub driver is very deliberate. It allows wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the E-Subs steel front mounting flange forms the entire front baffle of the finished product, while the drivers back-plate is threaded and bolted to the rear wall of its enclosure for support.

To power these innovative drivers, JL Audio engineered a completely new switching amplifier with a regulated, switching power supply, making its chassis more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.

Conveniently controlled from the E-Sub cabinets top panel, the amplifier incorporates studio-grade signal processing to make adjustments a much more enjoyable experience than rearmounted controls found on most powered subwoofers. An attractive cover hides and protects the controls during normal use.

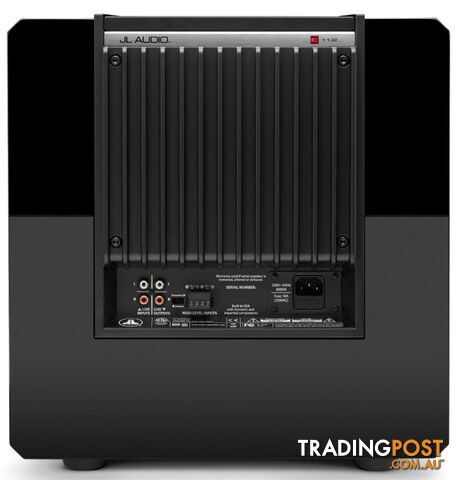

The feature set has been designed to allow the use of E-Subs in a wide range of applications, from full home theatre systems to dedicated two-channel music systems, to desktop audio workstations. Analog inputs are provided for unbalanced line-level signals or speaker level signals. Dedicated line outputs are included to make a bi-amped system arrangement with no additional hardware required. Useful in combating ground-related noise problems, a rear panel switch configures the line level inputs as grounded or isolated.

The E-Subs active crossover is a true two-way, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer's amplifier and a high-pass filtered signal exiting its line outputs. When the on-board crossover is defeated, as is typical in a home theater installation, the line outputs deliver a pass-through, buffered signal identical to its line inputs, easily permitting multiple E-Subs to be interconnected in a daisy-chain' arrangement.

Switchable polarity and a fully variable phase control round out the signal processing section. All signal processing is performed in the analog domain, ensuring very low latency in critical applications.

Precision-built in JL Audio's U.S. factory, all E-Sub are individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theatre system.

About E-Sub

E-Sub powered subwoofers apply a series of our key technologies to deliver exceptional sound quality, power and value in a wide range of demanding applications. Inside each E-Sub, a state-of-the-art, long excursion JL Audio driver combines with a highly efficient, proprietary switching amplifier to deliver astonishing performance from a very compact subwoofer cabinet.

Built like no other

The E-Sub driver is an unconventional design, requiring very specific production fixtures and procedures. As one of our highest technology subwoofer drivers, it is built by the same team that assembles our flagship W7-HT drivers, and is tested to the same quality standards. Final assembly of every E-Sub takes place in our Miramar, Florida factory, where skilled technicians bring together the driver, enclosure, and electronics package. A full acoustical and electrical test takes place at the end of the production line, to verify the performance of each finished subwoofer.

Technology

JL Audios engineering department is at the forefront of research into fundamental loudspeaker behaviour.

They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has borne subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability.

It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.

Technical Specifications

Enclosure Type
Sealed

Enclosure Finish
Black Gloss
Black Ash

Frequency Response (Anechoic)
22 - 118 Hz (±1.5dB)
-3 dB at 21 Hz / 120 Hz
-10 dB at 17 Hz / 153 Hz

Effective Piston Area (Sd)
84.4 sq in / 0.0545 sq m

Effective Displacement
235 cu in / 3.9 L

Amplifier Power
1500 W RMS short-term

Power Modes
Off, On or Automatic (Signal-Sensing)

Light Modes
N/A

Width
15.5 in / 394 mm

Height including feet
16.23 in / 412 mm

Depth
18.39 in / 467 mm
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.
E&OE
