Klipsch RP-504C II Centre Speaker

Contact us for Availability

Stereophonic has always been committed to providing our customers products that are Genuine, Brand New and fully covered by the Manufacturers Warranty.  Due to some disreputable online retailers, this product is not available as an "add to cart" item.

Please call us on (03) 9380 8485 or email at [email protected] and well take it from there.

We apologise for any inconvenience and hope you understand the need to not only uphold brand reputation and integrity, but also ensure that you actually get what you paid for.

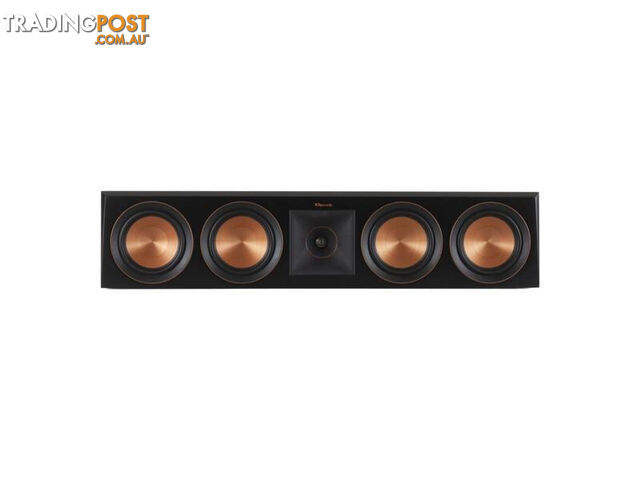

Klipsch RP-504C II Centre Channel Speaker
Product Features
1 Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
Quad 5.25 Spun Copper Cerametallic Woofers
Bass-Reflex via Rear-Firing Tractrix® port
Premium Scratch Resistant Ebony and Walnut Finishes
Strong, Flexible Removable Magnetic Grille
Redesigned from the ground up, the all-new Reference Premiere series leverages over 70 years of Klipsch signature acoustic expertise with cutting-edge technology to deliver the ultimate home theatre solution. There is no more important speaker to your surround sound system than your centre channel. Its the speaker that holds the rest of the system together.
All of your dialogue comes from this speaker and that means you want to have the best quality speaker you can find to get the clearest experience possible. If you cant understand the words, the rest is irrelevant. Our centre channel speakers are designed to give you the clearest movie dialogue and music lyrics for an ultimate home theatre experience. No other brand on the market can deliver the realistic detail and emotion like Klipsch. Hear what youve been missing.
New Horn and Grille
Klipsch redesigned the Tractrix® horn from a 60×90 horn to a 90×90 horn for a wider dispersion area. This square horn mouth is paired with a circular horn throat for enhanced sound staging, while maintaining the dynamic, powerful sound of a Klipsch speaker. Strong, flexible grilles magnetically detach revealing a clean baffle. Unlike the Reference II series, the magnets have been embedded within the baffle for superior high frequency diffraction reduction. A brushed polymer veneer adds more modern aesthetic for the Reference Premiere series. The clean, seamless lines of these speakers allow them to be incorporated into any decor.
Hybrid Tractrix® Horn Technology
Klipsch proprietary Tractrix® horn-loaded technology ensures high-frequency energy of the RP-504C centre channel speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls meaning you experience the most clear, detailed, lifelike sound possible.
Horn Anatomy
Klipsch Reference Premiere series speakers feature a compressed moulded silicon face thats matted to the 90×90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modelled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.
All-New Vented Tweeter
A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction. The titanium tweeter diaphragms light weight yet rigid composition exceeds the performance of aluminium, polymer or silk tweeters. Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound. A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.
Cerametallic Woofers
Klipsch Proprietary Cerametallic woofers are the RP-504C centre channel speakers signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.
Woofer Anatomy
Klipsch Cerametallic cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity. Reference Premiere woofers are housed in a non-resonating, stamped-steel basket thats secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.

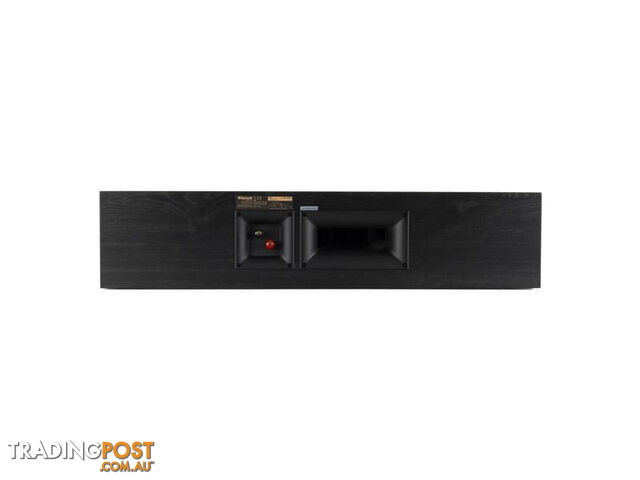

Rear Tractrix® Port
The rear Tractrix port of the Reference Premiere centre channel speakers is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
Robust Input Terminals
Single 5-way screw terminals accept banana plugs or bare wire up to 12-gauge for flexible, lasting connections while the vibrant colour coding provides easy set-up and connection.
Finished To Perfection
The RP-504C ebony and walnut finishes boast satin painted baffles with a scratch resistant design for an elegant audio solution to your home theatre system. Strong, flexible, magnetic grilles provide protection and a sleek aesthetic to compliment your homes decor.
The Great American Speaker Company
Klipschs founder, Paul W. Klipsch, was an engineer, inventor, madman and certified genius. He spent his life trying to bring the world better sound. Since 1946, Klipsch have carried on their founders passion for delivering the best home audio experience possible. Youre not buying a speaker youre buying a piece of American audio history built on more than 70 years of badass acoustic technology.
Technical Specifications

Frequency Response
58 Hz 25 kHz +/- 3dB

Sensitivity
97dB @ 2.83V / 1m

Power Handling (Cont / Peak)
150 Watts / 600 Watts

Nominal Impedance
8 Ohms Compatible

High Frequency Driver
1 Titanium LTS Tweeter with Hybrid Cross-Section Tractrix Horn

Low Frequency Driver
Quad 5.25 Cerametallic Cone Woofers

Enclosure Material
MDF

Enclosure Type
Bass Reflex via rear-firing Tractrix port

Inputs
Single Binding Posts

Dimensions (H x W x D)
17.3 x 79.1 x 36.7 cm
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
