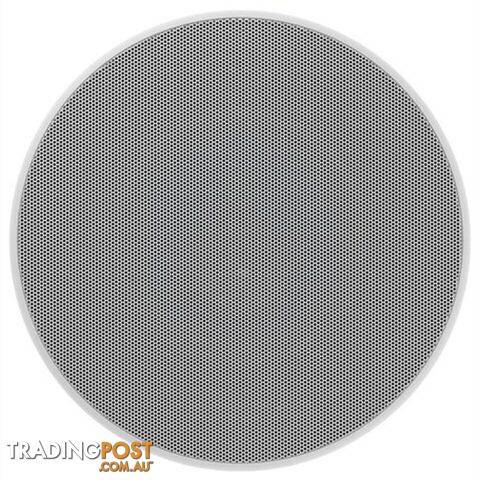

B&W CCM684 In-Ceiling Speakers (Pair)

The entry point among the CI 600 range of 8in in-ceiling speakers, the two-way CCM684 features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. As with the other 8in speakers in the range, the tweeter housing pivots for adjustable off-axis treble response. It also comes with an EQ switch, as well as QuickDogs and a plug-and-play functionality for easy installation.


Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 35Hz 35kHz
Recommended Amp Power 25 130w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8 (4.5)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C.Variant: Default Title
