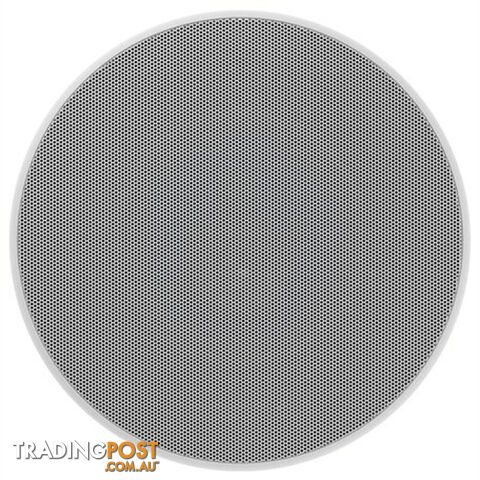

B&W CCM682 In-Ceiling Speakers (Pair)

A high performance ceiling-mount speaker featuring a 200mm (8in) Kevlar cone bass/midrange driver with a rigid die-cast chassis, and a Nautilus swirl-loaded aluminium dome tweeter that pivots for adjustable off-axis treble response. A 30mm coil and 100mm magnet make this an incredibly efficient and reliable speaker, with outstanding sound quality and a maximum amp power of 150W. Other features include superior crossovers components, gold plated terminals and a three-position EQ switch.


Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) Nautilus swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue Kevlar® cone bass/midrange
Frequency Range (-6dB) 35Hz 50kHz
Recommended Amp Power 25 150w
Sensitivity SPL (2.83V, 1m) 89dB
Impedance Nominal (min) 8 (4.5)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C.Variant: Default Title
