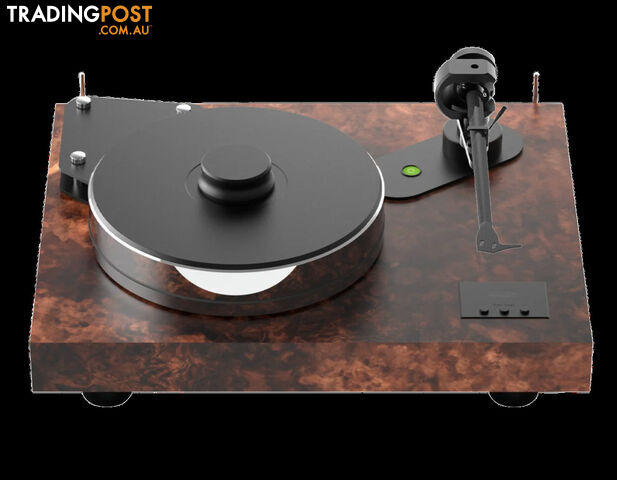

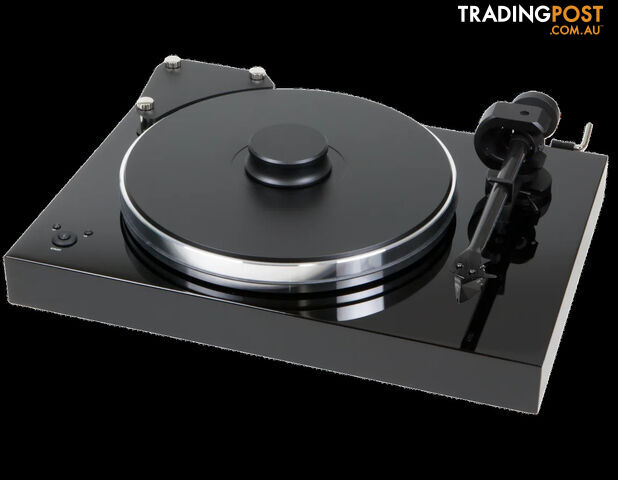

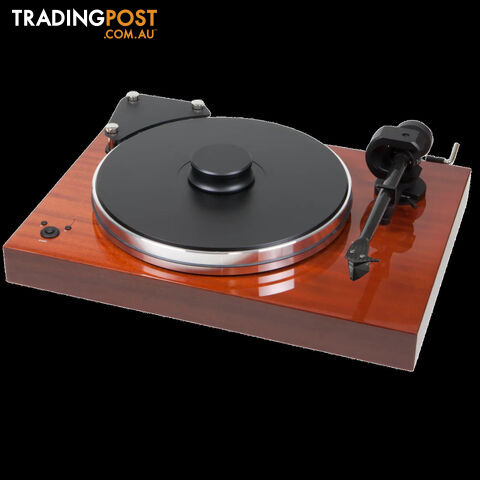

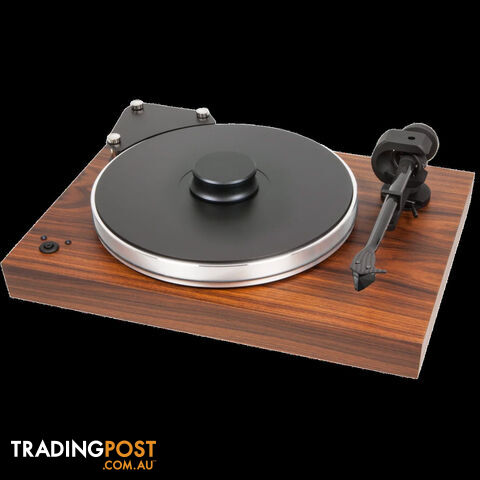

ProJect Xtension 9 Evolution Turntable with Cartridge Options

Introducing the Xtension 9 Evolution Turntable

Prefitted with your choice of Cartridge and Hand made in Europe for Stunning vinyl performance from a compact, luxurious turntable

ProJect considers the Xtension 9 Evolution quite an achievement. Theyve managed to incorporate all of their turntable design experience from more than 20 years in to a high end, slim-line size to fit standard audio racks.

The Xtension 9 chassis is made from MDF filled with metal granulate for high mass that virtually nulls resonance. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16kg total turntable mass. The result is a unique combination of mass loaded and floating turntable design principles.

Instead of pure metal for the main platter, theyve found a perfect alloy which has been damped with thermo plastic elastomers (TPE). Additionally it's glued recycled Vinyl records to the top (which act as a perfect mat) and baked this sandwich before precision balancing it.

The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. The Xtension 9 Evolution includes a top-class 9cc Evolution tonearm and comes complete with a dust cover.

Additionally
Heavy 16 kg belt drive turntable
Mass loaded magnetic floating sub-chassis
Precision balanced sandwich platter
Inverted ceramic ball bearing with magnetic support
Heavy weight record clamp
MDF chassis filled with metal granulate with low levels of resonance and high mass
Electronic speed control between 33 and 45 RPM
9cc Evolution tonearm made from carbon fibre
Inverted tonearm bearings (ABEC 7 quality)
Product Features
Moving Coil principle
Simple and fast mounting
High fidelity
Exceptionally lively
Very detailed with low distortion
Needs MC-compatible phono input
Robust polyamid-body
Resonance free thanks to laser-sintering-process
Rigid mounting plate out of metal
Threaded holes for simple mounting without nuts
Optimum contact to headshell thanks to three-point pad
Technical Specifications

Speed
33-1/3 RPM
45 RPM
Electronic Speed Change

Drive principle
Belt drive

Platter Weight
5.4 kg
Plater Diameter
300 mm
Speed Variance

±0.09%

Wow and flutter

±0.1%

Signal to Noise
73 Db
Tonearm

9" one-piece carbon fibre tonearm

Effective arm length
230 mm
Tracking force range
0-25mN
In the Box

ProJect Xtension 9 Evolution Turntable
Record Puck
Connect It E 5P to RCA phono cable
Dust Cover
Power Supply
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
