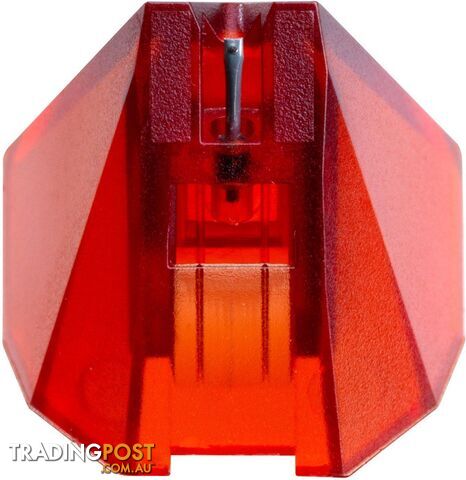

Ortofon Hi-Fi 2M Red Replacement Stylus

Replacement stylus for Ortofon 2M Red cartridge

Technical data |
---|---
Frequency range | 20-22,000 Hz
Frequency response | 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force | 70 µm
Compliance, dynamic, lateral | 20 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Equivalent stylus tip mass | 0.5 mg
Tracking force range | 1.6-2.0 g (16-20 mN)
Tracking force (recommended) | 1.8 g (18 mN)
Tracking angle | 20°
Stylus colour | Red
Recommended for the following cartridges | 2M Red / 2M Red Verso (interchangeable with 2M Blue / 2M Blue Verso).Variant: Default Title
