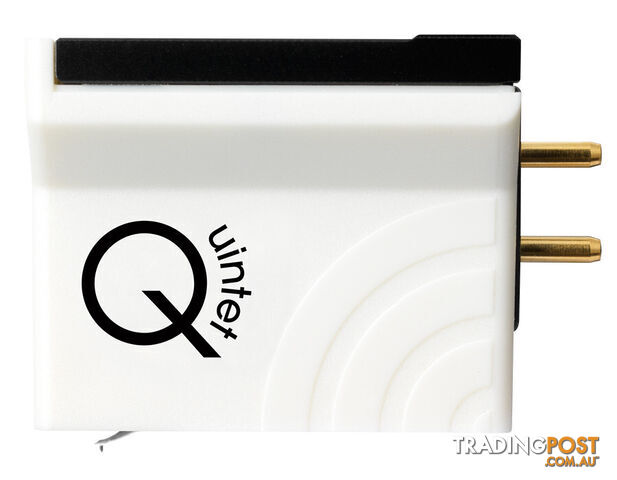

Ortofon Quintet Mono MC Phono Cartridge

The Quintet Black is the best example of Quintet’s overall excellence.

The Quintet Black is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Boron cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction thoughout the spectrum, including even the most high frequency groove information.

The Quintet Black will be unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

Technical data



Output voltage at 1000 Hz, 5cm/sec. 0.3 mV
Channel balance at 1 kHz
Channel separation at 1 kHz > 23 dB
Channel separation at 15 kHz > 15 dB
Frequency range at - 3dB 20 - 25.000 Hz
Frequency response 20-20.000 Hz +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) 80 µm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Nude Shibata on Boron cantilever
Stylus tip radius r/R 6/50 µm
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force, recommended 2.3 g (23 mN)
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Aucurum
Cartridge colour Black
Cartridge weight 9 g

*Reprint from Manufacturers Website.
