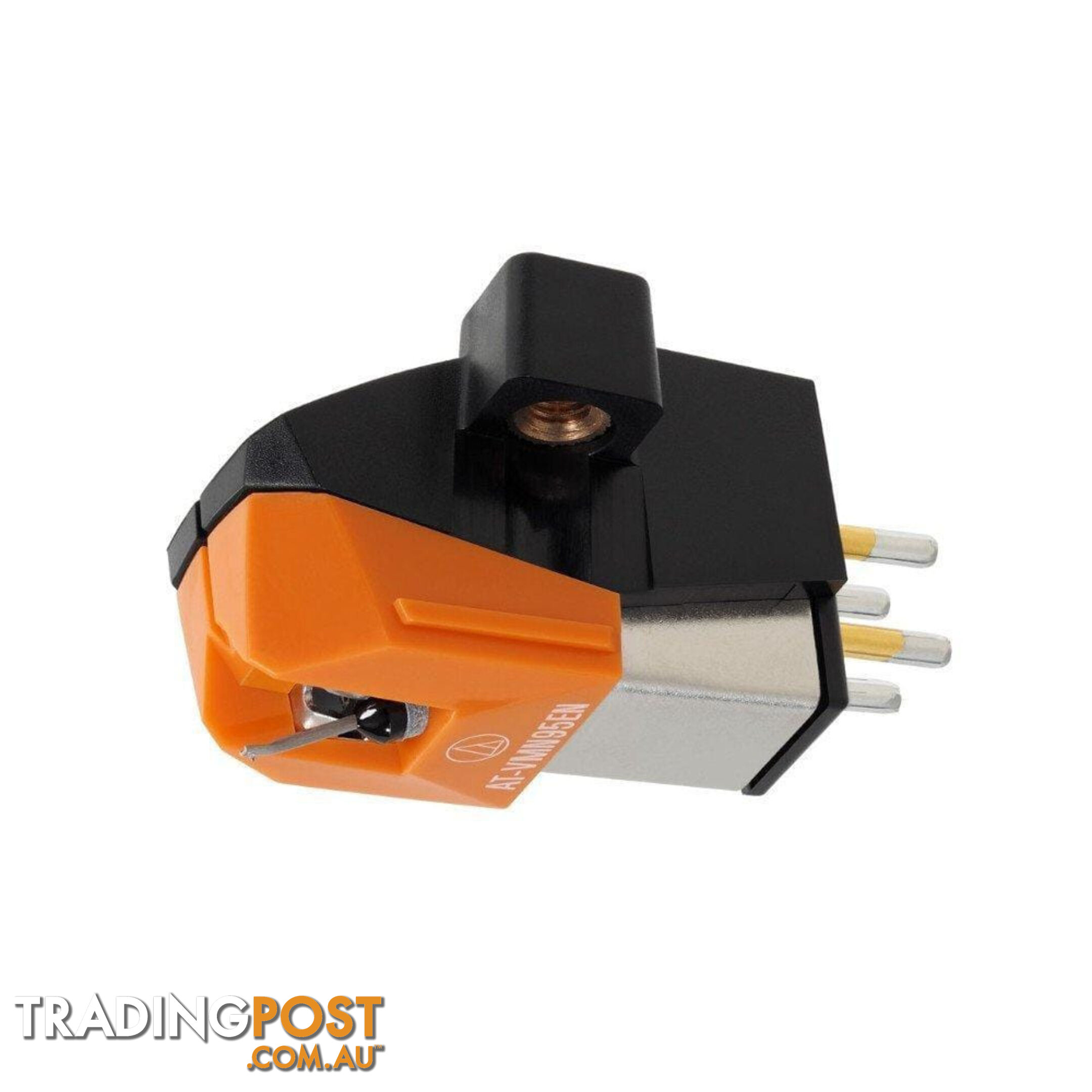

Audio Technica AT-VM95EN Dual Moving Magnet Cartridge

Meet the AT-VM95EN

Dual Moving Magnet Cartridge

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables.  The cartridge offers excellent channel separation and low distortion for outstanding tonal quality.

The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Technical Specifications

Type
VM Stereo Dual Magnet

Mounting
½ centres

Frequency Response
20 to 23,000 Hz

Channel Separation
22 dB (1 kHz)

Output Channel Balance
2 dB (1 kHz)

Output Voltage
3.5 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
23 degrees

Vertical Tracking Force
1.8 to 2.2g (2.0g standard)

Stylus Construction
Nude Round Shank

Stylus Shape
Elliptical

Stylus Size
0.3 x 0.7 mil

Cantilever
Aluminium Pipe

Static Compliance
20 x 10^ (6cm) / dyne

Dynamic Compliance
7 x 10^ (6 cm) / dyne (100 Hz)

Wire Used for Coil
T.P. Copper

Recommended Load Impedance
47,000

Coil Impedance
550 mH (1kHz)

DC Resistance
485

Coil Inductance
550 mH (1 kHz)

Cartridge Weight
6.1 g

Dimensions
17.2 (H) x 18.9 (W) x 28.3 (L) mm

Mounting
1/2" Centres

Included Accessories
Two 11 mm installation screws
Two 8 mm installation screws
Two washers
Non-magnetic screwdriver
