Audio Technica VM540ML/H Dual Magnet Cartridge + Headshell Combo Kit

AUDIO TECHNICA VM540ML/H DUAL MAGNET CARTRIDGE

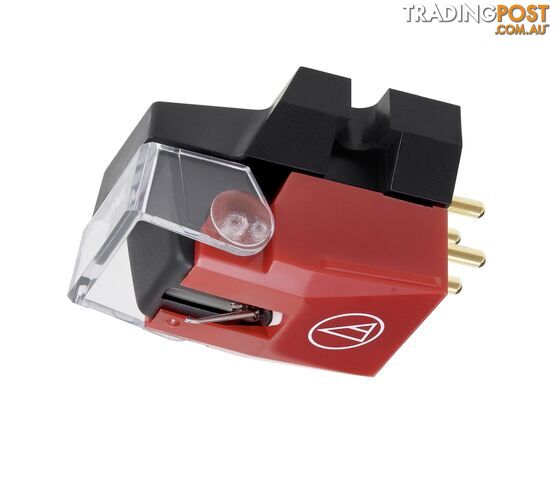

The VM540ML/H combo kit includes the VM540ML MicroLine® dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2-mount headshell.


The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges, while also incorporating todays advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridges MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply cant match. The styluss multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

In the record production process a cutter head carves out the record grooves. The modulations in the groove are analogue mechanical equivalents of the original audio signals. To read these modulations, Audio-Technica developed the patented Dual Magnet design which duplicates the structure of the cutter head. Instead of using a single, large magnet, the two magnets are arranged in the shape of a V. The two magnets are positioned precisely to match positions of the left and right channels in the stereo groove walls. Consequently, the VM design provides outstanding channel separation, extended frequency response and superb tracking. All models feature high-purity 6N-OFC (99.9999% pure oxygen free copper) wiring for maximum sonic purity and extraordinary resolution of fine musical detail.

Features:

Available as complete with headshell only
VM dual magnet cartridge with MicroLine® stylus
Aluminum cantilever
Paratoroidal coils improve generating efficiency
Center shield plate between the left and right channels reduces crosstalk
Durable low-resonance polymer cartridge housing
Universal ½"-mount headshell for 4-pin turntable cartridges.Variant: Default Title
