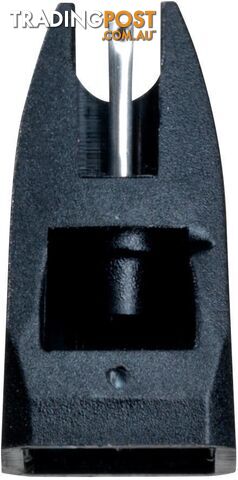

Ortofon Hi-Fi 78 Replacement Stylus

Replacement stylus for Ortofon 78 cartridge

Technical data |
---|---
Frequency range | 20-15,000 Hz
Frequency response | 20-12.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) | 60 µm
Compliance, dynamic, lateral | 15 µm/mN
Stylus type | Spherical
Stylus tip radius | 65µm
Equivalent stylus tip mass | 0.5 mg
Tracking force range | 1.75-2.25 g (17.5-22.5 mN)
Tracking force, recommended | 2.0 g (20 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for the following cartridges | All Super OM, OM, OMB, OMP, TM, Concorde cartridges for playing 78 r.p.m. records

*reprint form manufacturers website.Variant: Default Title
