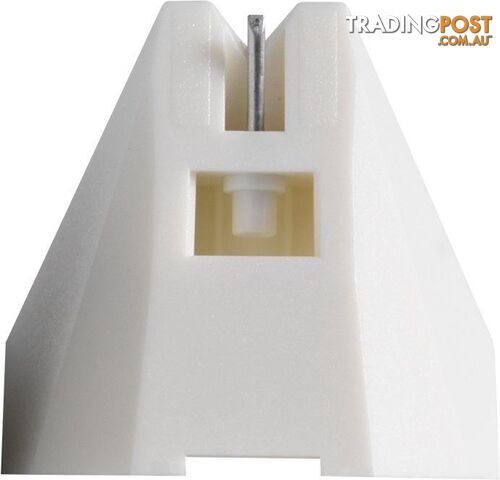

Ortofon Hi-Fi 2M Mono Replacement Stylus

Replacement stylus for Ortofon 2M Mono cartridge

Technical data |
---|---
Frequency range at -3 dB | 20-22,000 Hz
Frequency response | 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force | 70 µm
Compliance, dynamic, lateral | 18 µm/mN
Stylus type | Nude Spherical
Stylus tip radius | R 18 µm
Tracking force range | 1.6-2.0 g (16-20 mN)
Tracking force (recommended) | 1.8 g (18 mN)
Tracking angle | 20°
Stylus colour | White
Recommended for the following cartridges | 2M Mono / 2M Mono Verso

*reprint form manufacturers website.Variant: Default Title
