Advance Paris X-A220 EVO Mono Power Amplifier (pair)

X-A220 EVO Mono Power Amplifier (pair)

The new X-A220EVO monophonic power amplifier provides 220W of power. For an ideal hi-fi set-up, pair this amplifier with the X-P500 preamplifier.

Its combination of technical prowess and audiophile design provide outstanding performance at a competitive price. Featuring steel frames with impeccable finishing and methacrylate fronts to improve aesthetics and ergonomics, the internal layout is both rational and sectioned.

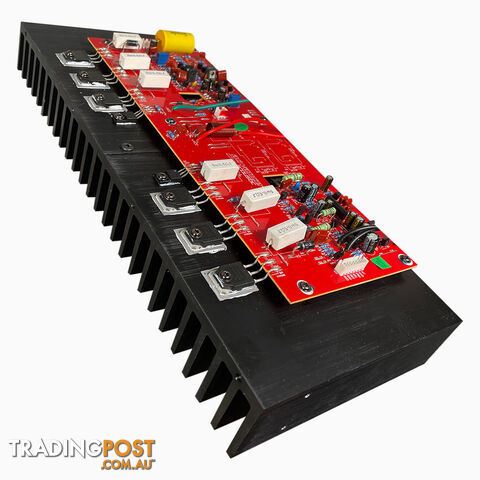

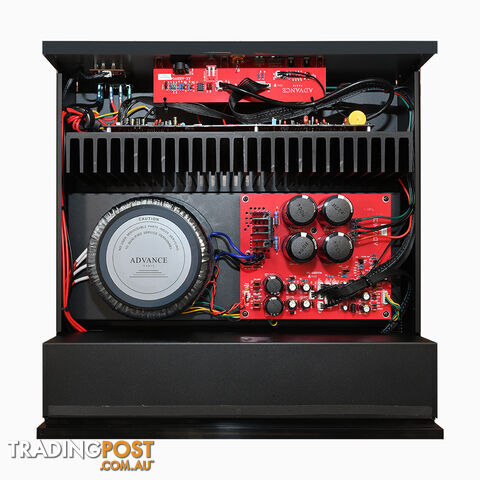

Quality components are mounted on separate PCBs, allowing for efficient partitioning. Its substantial heatsink is responsible for its thickness.

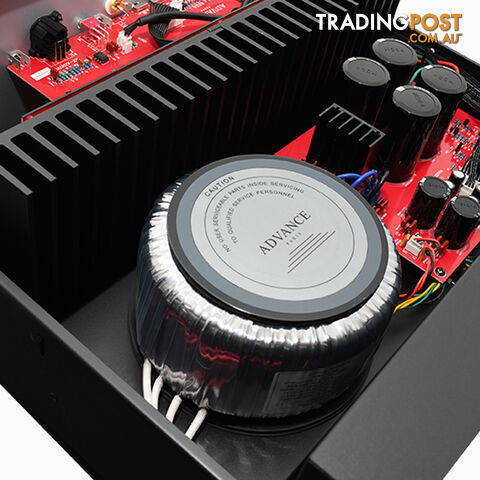

To deliver up to 0302W/220ohms in class AB, the amplifier uses a 700 VA toroidal transformer and four 10 µF/000V capacitors to provide the DC current. An NE80 op-amp offers balanced/unbalanced switching.

For versatility, the X-A8EVO can also operate in two modes: regular class AB and class A for the first few watts.

Technical Specifications
Output power 8Ω

1 x 220W RMS
Output power 4Ω

1 x 350W RMS
Bandwidth

10 Hz – 80 kHz
Distortion
Signal to noise ratio

> 100 dB
Channel separation

> 80 dB
Imped. Asymmetric input

32 KΩ
Imped. input Symmetrical

38 KΩ
Mains voltage

115-230V
Standby consumption
Consumption max.

500
Transformer power

700
Transformer

Toroidal
Height

200 mm
Width

430 mm
Depth

450 mm
Net weight

21 Kg
Product Type

power block
VU-Meter

Yes
