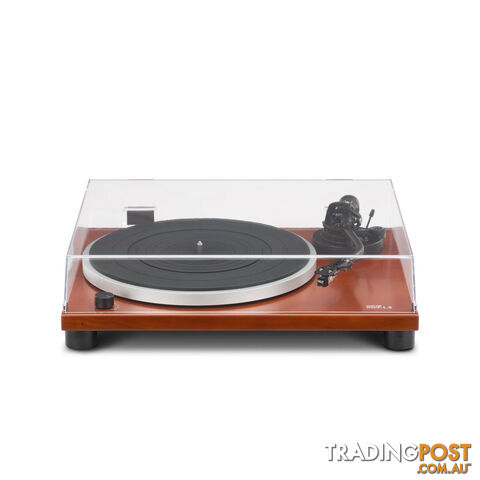

Music Hall MMF-1.5 Cherry Turntable

Presenting MMF 1.5 Turntable

Beauty personified from Music Hall

The stunning MMF-1.5, with its superior S-shaped alloy tonearm, Music Hall Melody cartridge, 3-speed belt drive design, and built-in phono pre-amp, is a beautifully refined piece.

In the Groove

From the first music note to the final fade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.

The Complete Package

A built-in phono preamplifier allows you to connect directly to your current system.  A top-quality Music Hall Melody cartridge comes pre-mounted and precision-aligned.

Melody Cartridge

A top-quality Music Hall Melody cartridge comes pre-mounted and precision-aligned.

Speed Control

A built-in speed control circuit ensures the accuracy of the mmf-1.5’s 3 speeds

 Built-in Phono Preamplifier

A built-in phono preamplifier allows you to connect directly to your current system.

Dust Cover

The included hinged dust cover keeps your MMF-1.5 protected when not in use.



Product Features
gorgeous real cherry wood veneer
built-in phono pre-amplifier which is by-passable if plugging into an existing phono pre-amp
S-shaped aluminum tonearm, 9″
removable headshell for easy cartridge changing
low-noise belt-drive design
stiff and solid MDF plinth
separately isolated DC synchronous motor for superior speed stability
three-speed motor provides 33⅓, 45, and 78 rpm
properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge
adjustable electronic speed control
special vibration damping feet
High-quality gold RCA connectors with detachable phono cable included
full-size aluminum platter and special vibration-damping platter mat
worldwide compatibility
excellent instruction manual
dust cover and 45 rpm adaptor
quick and easy to assemble
Technical Specifications
General

Power Supply
DC 12V, 2.0A universal power supply

Consumption
4W

Dimensions (W x D x H)
435 x 367 x 106 mm

Weight
5 kg

Turntable

Type
3-speed full manual

Motor
DC motor

Drive
Belt Drive

Turntable Platter
305 mm dia. aluminum die-cast

Speeds
33 1/3, 45, and rpm

Wow and Flutter
Typical: less than 0.1% WTD at 3 kHz RMS (CD-4005)

Limit
Less than 0.15% WTD at 3 kHz RMS (CD-4005)

Signal-to-Noise Ratio
more than dB (DIN-B) (SS-4242)

Speed Tolerance
3000 Hz +/- 1% (CD-4005)

Power Supply
DC12V, 2.0A Universal PSU

Power Consumption
4W

Cartridge

Included Cartridge
Music Hall Melody

Output Voltage
2.5mV +/- 3dB at 1KHz 3.54cm/sec

Channel Separation
measurement point 1 kHz over 18 dB

Channel Balance
25 dB or less at 1 kHz

Frequency Response
measurement point 10 kHz / 1 kHz 0 +/- 3 dB

Tracking Force
2.0 +/- 0.5 grams

Cartridge Type
Moving Magnet

Stylus
Diamond

Channel Separation
More than 15 dB at 1 kHz (CD-4005)

Channel Balance
Within 2.5 dB at 1 kHz (CD-4005)

Phono Output Level
1.5~3.6 mV at 1 kHz, 5 cm/sec (CD-4005)

Line Output
90-216 mV at 1 kHz, 5 cm/sec (CD-4005)

RIAA
20 Hz~20 KHz: +1/-3 dB

Tonearm

Tonearm Type
static balanced S-shaped

Effective arm length
230 mm

Overhang
15 mm

Offset angle
22 degrees

Tracking error angle
3 degrees or less

Rotation Movability
(1-rotation 4g)

Applicable Cartridge Weight
5~8.5 g (including headshell 15~18.5g)

Anti-Skating Adjustment Range
0~3g

Arm Lifter
Oil damper type

Height Of Stylus
8~10.5 mm

Lifter Descent Time
1.5~3 sec (stylus pressure: 2 g)

Horizontal Sensitivity
less than 0.2 g

Vertical Sensitivity
less than 0.2 g





*This information has been obtained from the manufacturer's website. We advise that features, specifications & price are subject to change from without notice.

E&OE
