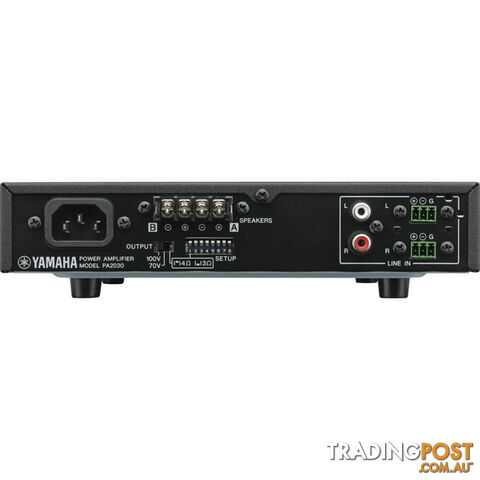

PA2030A 60W POWER AMPLIFIER 1X 60W 2X 30W YAMAHA

PA2030A CLASS-D POWER AMPLIFIER WITH SPEAKER EQ BUILD A SYSTEM THAT MEETS YOUR NEEDS For a larger system combine the PA2030A with the MA2030Amixer amp to drive more speakers, service a wider area, or set up a volume zone. An optional RKH1 rack mount can be used to mount either the half-rack size MA2030A or PA2030A alone, or both units side by side in a single 1U rack space. There's also an optional DCP1V4S control panel that can be connected to the MA2030A for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements. FLEXIBLE EQ FUNCTIONS The PA2030A includes a speaker EQ that can be selected via a rear-panel DIP switch to provide ideal equalization for Yamaha VXC or VXS series speakers. KEY FEATURES Easy setup, and a user-friendly interface for effortless operation Ideal partner for the MA2030A mixer amp with 3 stereo inputs and 2 microphone inputs Switchable for Lo-Z (3 ohm / 4 ohm) or Hi-Z (70V/100V) speaker systems Built-in EQ for optimum Yamaha VXC/VXS series speaker performance by adding a PA2030A Service zones can be expanded Remote volume control and microphone on/off switching via the optional DCP1V4S control panel Yamaha quality control ensures safe, reliable operation Space-saving 1U half-rack size* * Sufficient space must be provided above and below the unit for airflow and cooling. A SMART SIMPLE SOLUTION With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's newest additions to their Commercial Installation Solutions lineup, the MA2030A and PA2030A compact power amplifiers. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030A and PA2030Aprovides you with a compact, yet powerful tool to help shapeyour ideal commercial sound environment. DESIGNED FOR EFFORTLESS EVERYDAY USE The MA2030A Mixer Amplifier and PA2030A Power Amplifier feature interfaces that have been specifically designed for effortless operation. A layout that gives priority to the frequently used output volume knob while other controls are visually subdued, for example, significantly enhances control efficiency in normal day-to-day operation. And there's no need for computers or complex programming procedures for installation or operation. After a quick, easy setup procedure that requires no special knowledge or skill, the system is ready to deliver outstanding sound in a wide range of applications. SUPPORTS LO-Z AND HI-Z SPEAKER SYSTEMS Both the MA2030A and PA2030A directly support low impedance and high impedance speaker systems without the need for additional transformers or other hardware that can take up valuable installation space. When used to drive a 3 ohm or higher low-impedance speaker system (3 ohm / 4 ohm selectable) the amplifiers deliver up to 30W per channel into two channels. With a high-impedance 70V or 100V line connection output is a single channel at up to 60W. That's ideal output power for a variety of small installations. And since the MA2030A and PA2030A can be used with all Yamaha commercial installation speakers*, you have the choice and flexibility to design a sound system that ideallymeets your specific requirements. *Includes the VXS series, VXC series, VS series, S series, NS-AW series and NS-IC series.   SAFE AND EFFICIENT IN ANY ENVIRONMENT At the heart of both the MA2030A and PA2030A is a high-efficiency Class D amplifier that delivers sufficient power for small scale applications while consuming minimal mains power during operation. For absolutely quiet operation as well as superior reliability, both models feature thermal designs that achieve efficient cooling without the need for cooling fans. Intelligent protection functions inherited from our flagship models are included in the power supply and amplifier sections to prevent damage to the amplifier as well as the connected speaker system in the case of overload.   SPECIFICATIONS PA2030A General specifications PA2030A Output power 1kHz (THD N=1%: 3Ω) 30W x 2 (20ms Burst) 1kHz (THD N=1%: 4Ω) 30W x 2 (20ms Burst) High impedance: 100V line 60W x 1 High impedance: 70V line 60W x 1 Total harmonic distortion ≤ 0.1% (Stereo in to Speaker out 1kHz, 15W, 3ohm /4 ohm ), ≤ 0.2% (Stereo in to Speaker out 1kHz, 30W,70V/100V) Frequency response 0dB, -3.0dB, 1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3O/4O), 0dB, -3.0dB, 1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) Crosstalk ≤ -70dB (Stereo in to other Stereo in) I/O Connectors Mic Input - Stereo Input LINE IN: Stereo RCA pin, unbalanced, 3.5mm Euroblock 3-pin x 2, balanced Speaker Output Barrier strip x 2 pairs Line Out - Control ports - Input Level -10.0 dBV: Sensitivity / Nominal, 10.0 dBV: Max before clip (Unbalanced / Stereo Input), 4.0 dBu: Sensitivity / Nominal, 24.0 dBu: Max before clip (Balanced/ Stereo Input) Output Level - Protection circuit Load protection Power switch on/off: Mute the output, Output voltage protection: Compress the output, DC-fault: Power supply shutdown Amplifier protection Thermal: Limit the output - Mute - Shutdown (*Restored automatically), Over current: Mute the output (*Restored automatically), Integrated power limit: Compress the output Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown (*Restored automatically) Amplifier class Class D Cooling Conventional cooling, bottom to up airflow Power requirements 100V, 120V, 230V-240V; 50Hz/60Hz Power consumption Music source equivalent 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) Dimensions W 215mm (8.5") H 54mm (2.1") D 288mm (11.4") Net weight 1.8kg (4.0lbs) Accessories AC power cable, 3.5mm Euroblock plug (3-pin) x 1, Owner"s manual, Specification sheet Options RKH1 (Rack-mount Accessory), Others Operating Temperature: 0°C to 40°C, Storage Temperature: -20°C to 60°C, Rack-mountablewhen ensuring sufficient ventilation above and below the unit   MA2030/PA2030 Owner's Manual PDF file MA2030/PA2030 Technical Specifications PDF file RKH1 Owner's Manual PDF file MA2030/PA2030 Feature Video Video not loading? Watch it over at YouTube! Weight: 2.51 kg Barcode Number: 4957812610155
