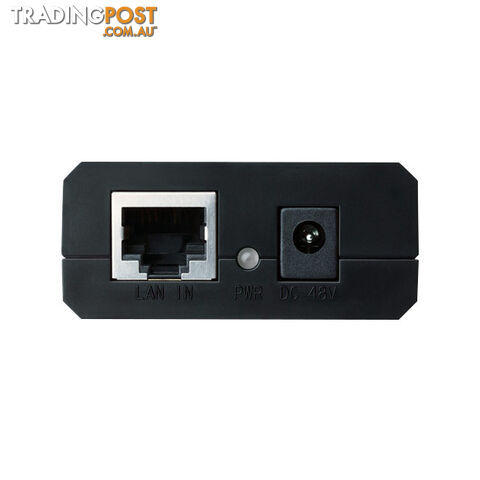

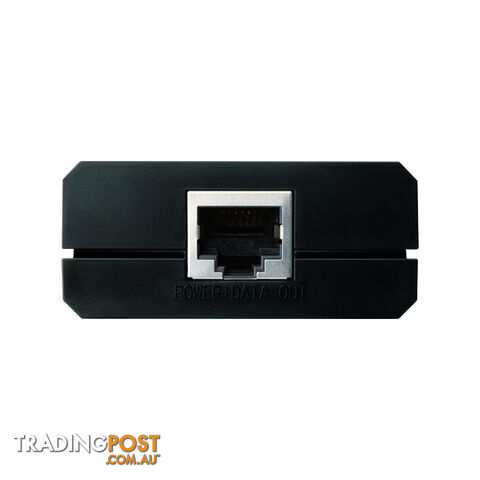

TLPOE150S TP-LINK POE LINE INJECTOR 48VDC OVER ETHERNET

TL-POE150S POE INJECTOR / SENDER ADAPTER - TP-LINK The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK¡¯s TL-POE10R, or other equivalentproduct, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. IEEE 802.3af compliant Auto-determine the necessary power requirements Plug-and-Play, requires no configuration Delivers power up to 100 meters External power adapter supply SPECIFICATIONS: Standards and Protocols  IEEE 802.3, 802.3u, 802.3af  CSMA/CD, TCP/IP Basic Function  Compatible with IEEE 802.3af compliant PDs  Delivers power up to 100 meters  Auto-determine the necessary power requirements  Plug-and-Play Ports LAN Port  1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX) PoE Port  1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum100m)  EIA/TIA-568 100¦¸ STP (maximum 100m)  100BASE-TX: UTP category 5, 5e cable (maximum 100m)  EIA/TIA-568 100¦¸ STP (maximum 100m) LED Indicator  PWR Safety & Emission  FCC, CE Dimensions (W*D*H)  3.2*2.0*0.9 in.(81*52*24 mm) Environment  Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)  Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)  Operating Humidity: 10%~90% non-condensing  Storage Humidity: 5%~90% non-condensing Power Output  15.4W (Max. 48VDC) Assets Weight: 0.3270 kg Barcode Number: 6935364030506
