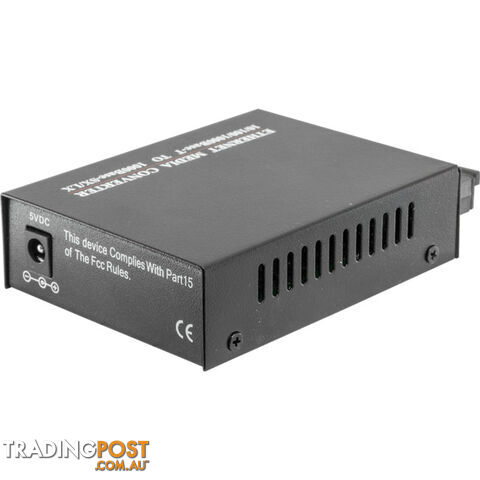

FMC1GBSM20KSC GIGABIT FIBRE MEDIA CONVERTER SM DUAL FIBRE SC 20KM

FEATURES OVERVIEW FMC1GBSM20KSC 10/ 100/ 1000M Fibre Media Converter transmits the signal from a twist-pair 10/ 100/ 1000Base-TX cable to 1000 Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fiber optic cable. FEATURES 10 /100/ 1000Mbps auto-sensed, easily upgrade Full-duplex and half-duplex auto-sensed MDI/ MDI-X Auto Negotiation 10/ 100/ 1000Mbps store-and-forward 1000Mbps cut-through transmission Packet size up to 1518bytes Support 9K Jumbo Frame Supporting VLAN/ VoIP/ QoS packets Support flow control and reduce broadcast packets Supporting STP to form a redundant network Extremely low power consumption, low heat, stable performance Providing Desktop, Wall-mounted, Chassis, DIN-rail installation Application Network Communication FTTH/ FTTB/ FTTx ISP Backhaul Networking AVAILABLE FIBRE MEDIA CONVERTERS Code Model Ports Speed Mode Dual Fibre Connector Distance 09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM 09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM                 09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M                 09051550 4P100SM20KSC 4 100MB SM Y SC 20KM 09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM                 09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.       SPECIFICATIONS Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Data Rate Copper: 10/ 100/ 1000M; Fibre: 1.25G Flow control Full duplex: flow control; Half duplex: back pressure Copper Port Numbers of Copper Port: 1 Connector: RJ45 Connector Distance:100m Fibre Port Numbers of Fibre port: 1 Connector: SC Wavelength:SMF: 1310nm Distance: SMF 20Km LED indicators PWR (power supply) FL/A (optical link/action) FDX (FX full duplex) TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs) 1000 (100M transmission rate of twisted pairs) Power Supply Working power: DC5V 1A ( SUPPLY INCLUDED ) Power consumption
