CSS230 SUPER SLIM 50MM INCEILING SPK MONITOR AUDIO

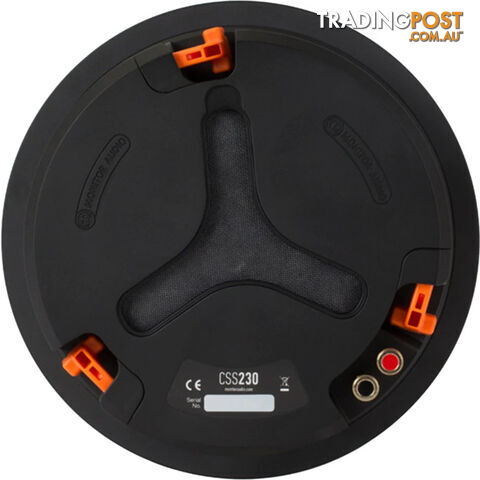

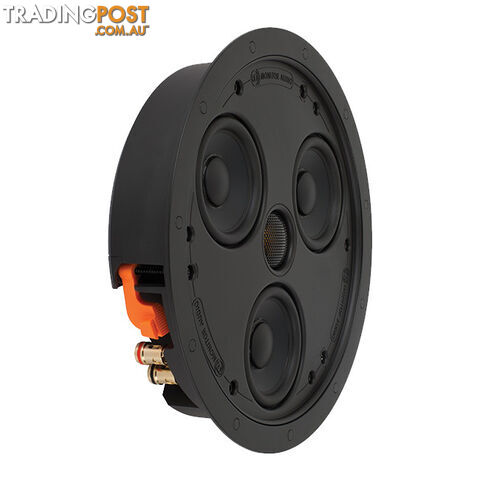

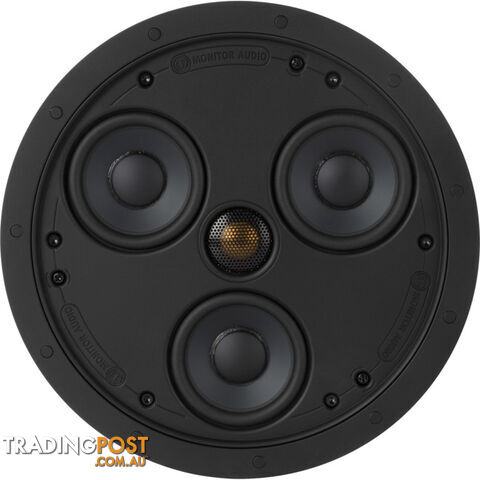

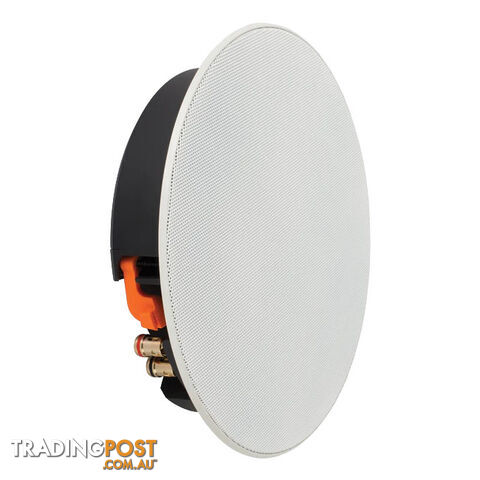

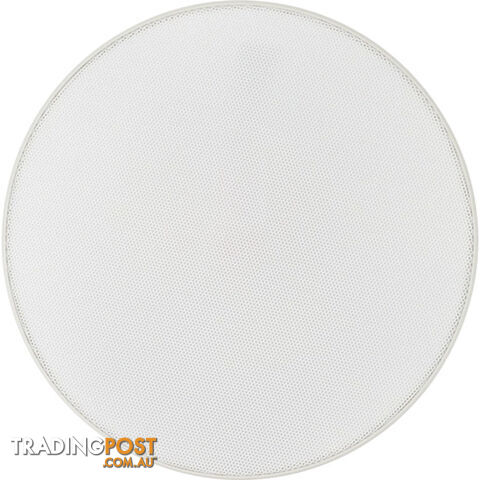

Monitor Audio CSS230 The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before. Between 2" stud frames or where pipework or cabling reduces mounting depth, thehybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility. The hybrid back-box provides the best of all worlds for installer and customer. Combined, thethree proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile. In keeping with Monitor Audio’s renowned design rigour, thecrossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress. Optionalsquareorpremium grillecan be used with this model.   SPECIFICATIONS Frequency Response (-6 dB) 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back) Nominal Impedance 8 ohms Sensitivity (1W@1M) 86dB Maximum SPL 103.8 dBA Power Handling (RMS) 40 Watts – Full range (60 watts with crossoverset to 100 Hz @ 12 dB/Octave) Recommended Amplifier Requirements 10 - 60 W Drive Unit Complement 3 x 3"C-CAMconebass-mid drivers 1 x 19 mm (3/4") C-CAM Gold Dome tweeter Crossover Recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) Connection Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2) Overall Diameter (Including Grille) 250 mm (913/16") Overall Depth (Including Grille) 54 mm (21/8") Cut-Out Hole Diameter 211 mm (81/4") Mounting Depth 50 mm (2") Optional Square Grille - Outer Dimensions 249 x 249 mm (93/16") Fixing Type 3 positionTri-Gripdog leg fixings Construction Material ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille Weight 2.88 kg (6 lb 5 oz) Pre-Construction Bracket CB6Pre-Construction Bracket (Purple) Sold As Single Unit     Â
