Compact PRO 2 PB Pipe Beveller Only Without Motor WA-PRO2PB

PRO 2 PB is a compact, handy pipe beveller that mills pipes made of carbon and stainless steel, aluminum alloys, and copper-nickels. As standard, it can face and bevel pipes from inner diameters (ID) of 22mm (0.87) to outer diameters (OD) of 48mm (1.89) but face also bevel pipes from inner diameters (ID) of 15.5mm to outer diameters (OD) of 60.3mm depending on the mandrel or extension being used (sold seperately).

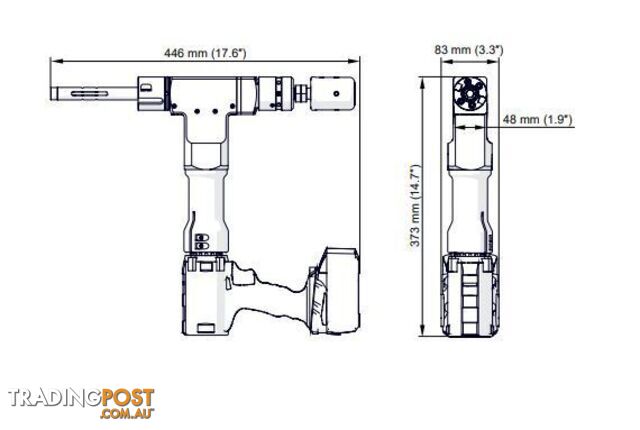

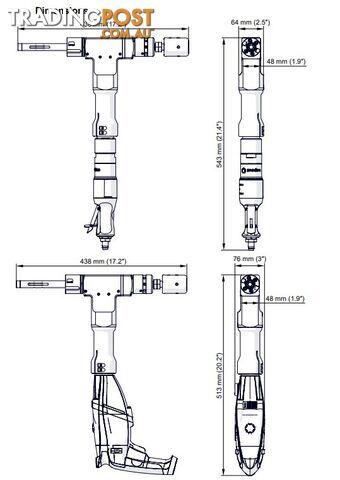

Its exceptionally narrow housing (only 48mm wide) makes it perfectly suited to space restricted areas such as boiler water walls.
PRO-2 PB incorporates overload systems incl. wet multi-disk friction clutch to prevent gear damage if the tool gets stuck.

KEY FEATURES

Lightweight and compact design
Enables easy access to space restricted areas

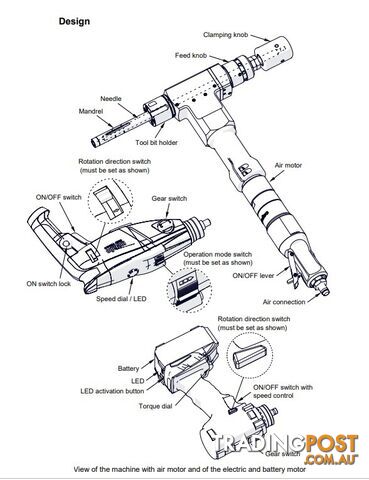

Can be operated with a high quality powerful pneumatic motor or top quality high torque electric motor or practical battery drive
Tool bits for stainless steel feature tialn coating
Optional accessories increase the number of possible applications
Dedicated to work with pipes within id 15.5mm id up to 60.3mm od range.

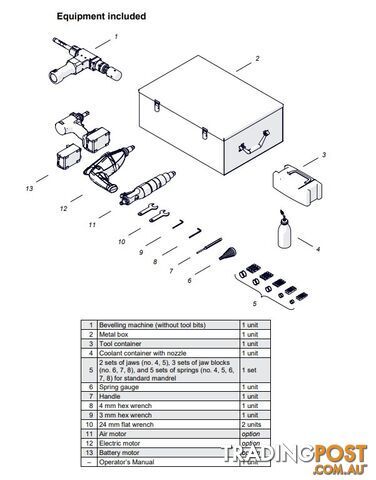

SET INCLUDES

PRO 2 PB Beveling Machine (Not Including Motor Or Cutting Inserts)
Standard Self-Centering Expandable Mandrel For Pipe Id Ø 18 42 Mm (0.70 1.65)
2 Sets Of Jaws (No. 4, 5),
3 Sets Of Jaw Blocks (No. 6, 7, 8) And
5 Sets Of Springs (No. 4, 5, 6, 7, 8) For Standard Mandrel
Tool Bit Holder
Spring Gauge
Handle
Coolant Container With Nozzle
Set Of Tools
OperatorS Manual
In Metal Carry Case

Can Be Operated With Any One Of The 3 Different Power Sources (NEED TO BUY SEPERATELY)

TECHNICAL DATA WITH POWER SOURCES

 PRO 2 PB WITH AIR MOTOR  WITH ELECTRIC MOTOR   WITH BATTERY MOTOR
 MOTOR

Pneumatic Motor

Air Requirement - 0.6MPa (87Psi)

Air Consumption - 1400 l/min (50 CFM)

Power - 800 W

Part No.- WAP-B05/100



Electric Motor

Voltage - 1~ 220-240V / 50-60Hz

Power - 1100 W

Part No. - WAP-B02/105





Battery Powered Motor

Voltage - 18 V DC 5.2Ah

Part No. - WAP B02/108




 CONNECTION  CEJN 410 DN 10.4 R 1/2" BSPT Fitting For Quick-Coupling  Electrical Plug   Battery Socket
 Pipe Diameter

 22mm ID-48mm OD

15.5mm ID-29mm OD

42mm ID-60.3mm OD







22mm ID-48mm OD    15.5mm ID-29mm OD

42mm ID-60.3 mm OD





22mm ID-48mm OD

15.5mm ID-29mm OD

42mm Id-60.3mm OD


MAXIMUM PIPE WALL THICKNESS

8mm

3.5mm



8mm

3.5mm



8mm

3.5mm


ROTATIONAL SPEED (Without Load)   210 rpm

 10-314 rpm (Gear 1)

10-377 rpm (Gear 2)



10-60 rpm (Gear 1)

30-205 rpm (Gear 2)


NOMINAL ROTATIONAL SPEED  105 rpm

10-134 rpm (Gear 1)

30-337 rpm (Gear 2)



10-60 rpm (Gear 1)

30-205 rpm (Gear 2)




WEIGHT (With Motor)  7.6 kg   7.4 kg   6.5 kg Including Battery








Part Number/SKU: WA-PRO2PB
