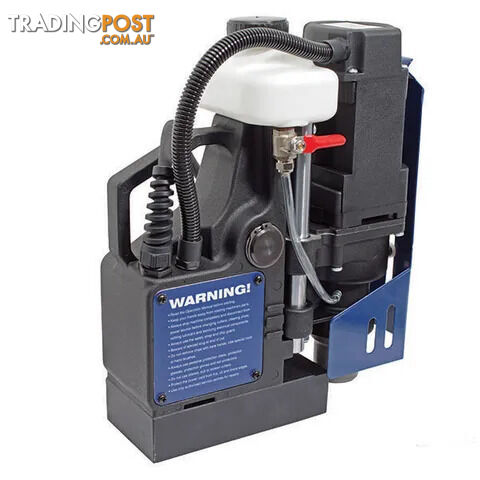

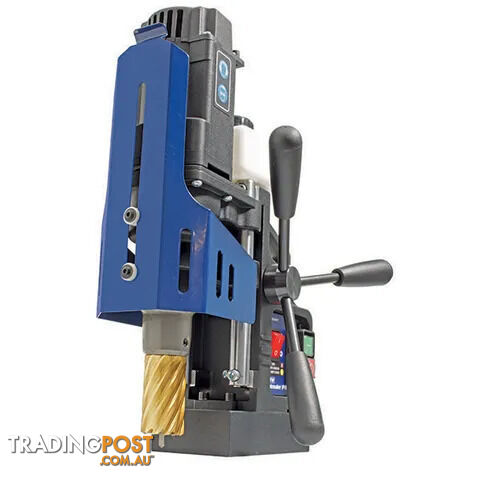

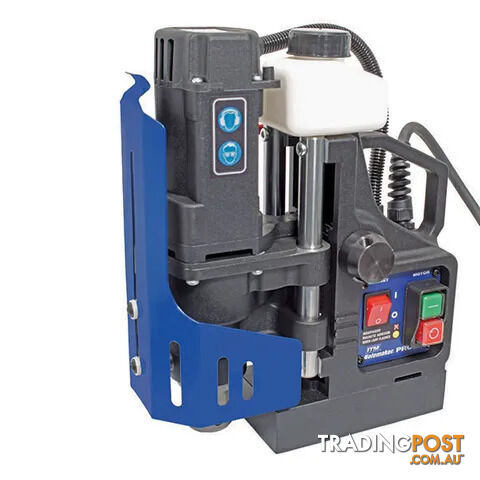

Magnetic Base Drill 240V 35mm x 52mm Holemaker HMPRO35

The Holemaker Pro 35 is a high quality, compact and robust, fully featured machine. Weighing in at just 10kg, this machine is ideal for those onsite and overhead tasks, whilst the solid, robust construction means the PRO 35 is perfect for everyday manufacturing type applications. The 35mm Diameter and 52mm Depth cutting capacity will suffice for most general holemaking requirements. Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications. The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions. Dual rail slide system provides rigidity and eliminates the need for gib adjustments. The well designed cutter guard system is easy to use and practical.

Features :

Quality, Compact & Robust European Made Machine
Lightweight, only 10 kg! Ideal for onsite & overhead tasks
Capacity (diameter) 35mm
Capacity (depth) 52mm
Gravity feed collant system with magnetically attached bottle

SPECIFICATIONS

Capacity ( Diameter ): 35mm
Capacity ( Depth ): 52mm
Motor Power: 920 watt
Input Power: 1000 watt Single Phase 240V
Speed: 350rpm
Weight: 10.0kg
Magnetic Dead Lift: 9500Nm On 25mm Steel Plate
Stroke: 70mm
Height: 306mm min / 376mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Plastic Carry Case With Cutter Guard & Safety Strap






Part Number/SKU: HMPRO35

* Product Images are for illustration purposes only, unless otherwise specified colour may be different..
